Kubota GL417
The Kubota GL417 is a tractor produced by Kubota. It is equipped with a 134.1 ci 2.2 L engine. The rated power output is 41.4 hp 30.9 kW. Transmission: 16 forward and reverse. Operating weight: 3175 to 3616 pounds.
Engine Power
41.4 hp
30.9 kW
Fuel & Capacities
9.25 gal
35.0 L
Transmission
16 forward and reverse
Operating Weight
3175 to 3616 pounds
Kubota GL417 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1996 - 2001
GL SeriesCompact Utility tractor |
|---|---|
1996 - 2001 | |
GL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota GL417 Engine | |
|---|---|
Kubota 2.2L 4-cyl diesel | |
Fuel tank | 9.25 gal
35.0 L |
Engine details ...  | |
Kubota GL417 Power | |
|---|---|
Engine | 41.4 hp
30.9 kW |
PTO (claimed) | 37.8 hp
28.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 6.3 gpm
23.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Rear lift | 1907 lbs
865 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 544@2600 |
806@2600 | |
1252@2600 | |
-544@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 72.1 inches
183 cm |
Weight | 3175 to 3616 pounds |
Front tire | 8-16 |
Rear tire | 13.6-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
GL (T0270-1920-8) published in 1996 |
Engine
Engine Detail — 134.1 ci / 2.2 L Diesel
Manufacturer | Kubota V2203 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 134.1 ci
2.2 L |
Bore/Stroke | 3.425x3.638 inches
87 x 92 mm |
Power | 41.4 hp
30.9 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed gear | |
16-speed power shift |

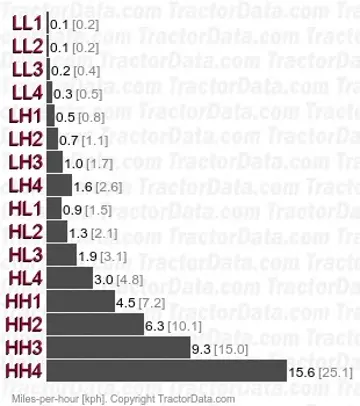

Transmission — 16 forward and reverse gear
Type | gear |
Gears | 16 forward and reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges (low/high) with additional creeper range and shuttle shift. | |
 | |
Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Dimensions
Kubota GL417 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 72.1 inches
183 cm |
Length | 130.9 inches
332 cm |
Width | 58.7 inches
149 cm |
Height (ROPS) | 85.6 inches
217 cm |
Height (cab) | 84.8 inches
215 cm |
ROPS Weight | 3175 lbs
1440 kg |
Cab Weight | 3616 lbs
1640 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 44.5 inches
113 cm |
Rear tread | 45.5 to 57 inches
115 to 144 cm |
