International Harvester 276

The International Harvester 276 is a tractor produced by International Harvester. It is equipped with a 144 ci 2.4 L engine. The rated power output is 37.5 hp 28.0 kW. Transmission: L1:L2:L3:L4:H1:H2:H3:H4:LR:HR. Operating weight: 4189 lbs 1900 kg.

Engine Power
37.5 hp 28.0 kW
Fuel & Capacities
12.7 gal 48.1 L
Transmission
L1:L2:L3:L4:H1:H2:H3:H4:LR:HR
Operating Weight
4189 lbs 1900 kg

International Harvester 276 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

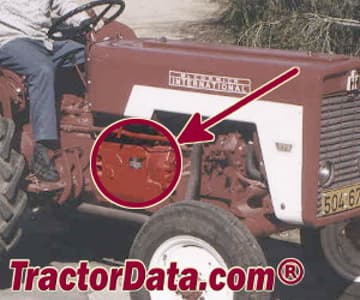

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

International Harvester 276 tractor photo
1966 - 1971 Utility tractor
1966 - 1971
Utility tractor
Production
Manufacturer
International Harvester
Utility tractor
Built in Bradford, England
Variants
276
utility tractor
2276
industrial tractor
International Harvester 276 Engine
International Harvester 2.4L 4-cyl diesel
Engine details ...
International Harvester 276 Transmission
8-speed gear
Transmission details ...
International Harvester 276 Power
Engine
37.5 hp 28.0 kW
Mechanical
Two-wheel drive
Differential lock
mechanical rear
Manual steering
Disc brakes
Open operator station.
Capacity
Fuel
12.7 gal 48.1 L
Hydraulic system
3 gal 11.4 L
Hydraulics
Capacity
3 gal 11.4 L
Pump flow
7.2 gpm 27.3 lpm
Tractor hitch
Rear Type
II/I
Control
position and draft control
Rear lift
2601 lbs 1179 kg
Power Take-off (PTO)
Rear PTO
transmission
Rear PTO Type
540
Dimensions & Tires
Wheelbase
76.4 inches 194 cm
Weight
4189 lbs 1900 kg
Front tire
6.00-16
Rear tire
12-28
Full dimensions and tires ...
References
276 references literature
276 published by International Harvester
276 Diesel Tractors published by International Harvester

Engine

Engine Detail — 144 ci / 2.4 L Diesel

Manufacturer
International Harvester BD-144A
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
144 ci 2.4 L
Bore/Stroke
3.375x4.00 inches 86 x 102 mm
Power
37.5 hp 28.0 kW
Rated RPM
1875
Firing order
1-3-4-2
Oil capacity
8.3 qts 7.9 L
Coolant capacity
10.8 qts 10.2 L

Transmission

Transmission — 8 forward and 2 reverse gear

Type
gear
Gears
8 forward and 2 reverse
Four gears, plus reverse, in two ranges.

Transmission — L1:L2:L3:L4:H1:H2:H3:H4:LR:HR

Transmission
L1:L2:L3:L4:H1:H2:H3:H4:LR:HR
:1.65:2.59:3.51:9.4:4.25:5.34:6.63:9:14:2.32:6.32

Dimensions

International Harvester 276 Tires
Ag front
6.00-16
Ag rear
12-28
Ag front
4.00-19
5.50-16
Ag rear
13-24
10-28
11-28
13-28
11-32
Dimensions
Wheelbase
76.4 inches 194 cm
Length
116.14 inches 294 cm
Weight
4189 lbs 1900 kg

Photos

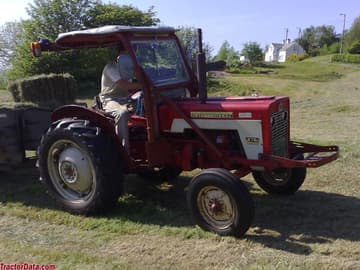

McCormick International 276 with canopy.

McCormick International 276 with canopy.

McCormick International 276 with canopy.

McCormick International 276 with canopy.

Open station 1976 McCormick International 276.

Open station 1976 McCormick International 276.

Open station 1976 McCormick International 276.

Open station 1976 McCormick International 276.

Open station 1976 McCormick International 276.

Open station 1976 McCormick International 276.
