Kubota GM56

The Kubota GM56 is a tractor produced by Kubota. It is equipped with a 202.5 ci 3.3 L engine. The rated power output is 55.1 hp 41.1 kW. Transmission: 24 forward and reverse. Operating weight: 4740 to 5049 pounds.

Overview

	1998 - 2006 GM SeriesUtility tractor
1998 - 2006
GM Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota GM56 Engine
Kubota 3.3L 4-cyl diesel
Fuel tank	15.9 gal 60.2 L
Engine details ...

Kubota GM56 Transmission
24-speed
Transmission details ...

Kubota GM56 Power
Engine	55.1 hp 41.1 kW
PTO (claimed)	51.1 hp 38.1 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS. Cab optional.

Hydraulics
Pump flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift	3814 lbs 1730 kg
	5004 lbs*With optional lift-assist cylinder. 2269 kg

Power Take-off (PTO)
Rear PTO Type	569/799/1130 (1.375)

Dimensions & Tires
Wheelbase	82.7 inches 210 cm
Weight	4740 to 5049 pounds
Front tire	8.3-20
Rear tire	12.4-32
Full dimensions and tires ...

Electrical
Ground	electric
Battery volts	12

Engine

Engine Detail — 202.5 ci / 3.3 L Diesel

Manufacturer	Kubota V3300
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	202.5 ci 3.3 L
Bore/Stroke	3.86x4.33 inches 98 x 110 mm
Power	55.1 hp 41.1 kW
Rated RPM	2200
Starter	negative
Starter volts	12

Transmission

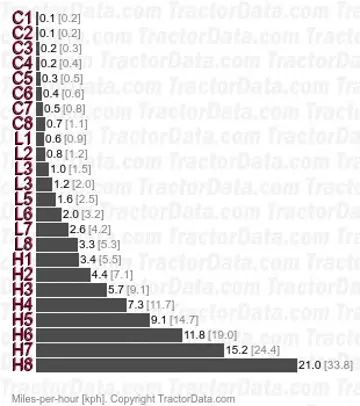

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Eight gears in three ranges with shuttle.

Dimensions

Kubota GM56 Tires
Standard tires (ag)	Front: 8.3-20. Rear: 12.4-32

Dimensions
Wheelbase	82.7 inches 210 cm
Length	143.9 inches 365 cm
Width	61.6 inches 156 cm
Height (ROPS)	96.9 inches 246 cm
Height (cab)	94.9 inches 241 cm
ROPS Weight	4740 lbs 2150 kg
Cab Weight	5049 lbs 2290 kg
Ground clearance	16 inches 40 cm
Front tread	48 inches 121 cm
Rear tread	48 to 67.7 inches 121 to 171 cm

Photos

Kubota GM56 tractor photo
