Kubota GM64

The Kubota GM64 is a tractor produced by Kubota. It is equipped with a 202.5 ci 3.3 L engine. The rated power output is 63 hp 47.0 kW. Transmission: 24 forward and reverse. Operating weight: 4916 to 5313 pounds.

Overview

	1998 - 2006 GM SeriesUtility tractor
1998 - 2006
GM Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota GM64 Engine
Kubota 3.3L 4-cyl diesel
Fuel tank	21.7 gal 82.1 L
Engine details ...

Kubota GM64 Transmission
24-speed
Transmission details ...

Kubota GM64 Power
Engine	63 hp 47.0 kW
PTO (claimed)	58.6 hp 43.7 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS. Cab optional.

Hydraulics
Pump flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift	3814 lbs 1730 kg
	5004 lbs*With optional lift-assist cylinder. 2269 kg

Power Take-off (PTO)
Rear PTO Type	564/795/1125 (1.375)

Dimensions & Tires
Wheelbase	84.7 inches 215 cm
Weight	4916 to 5313 pounds
Front tire	9.5-22
Rear tire	12.4-36
Full dimensions and tires ...

Electrical
Ground	electric
Battery volts	12

Engine

Engine Detail — 202.5 ci / 3.3 L Diesel

Manufacturer	Kubota V3300
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	202.5 ci 3.3 L
Bore/Stroke	3.86x4.33 inches 98 x 110 mm
Power	63 hp 47.0 kW
Rated RPM	2500
Starter	negative
Starter volts	12

Transmission

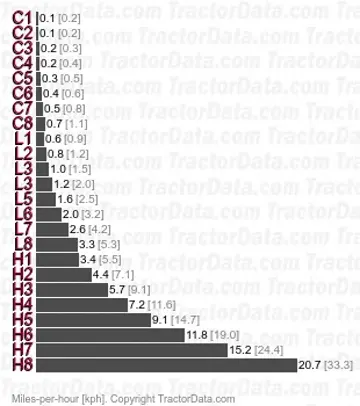

Transmission — 24 forward and reverse

Gears	24 forward and reverse
Eight gears in three ranges with shuttle.

Dimensions

Kubota GM64 Tires
Standard tires (ag)	Front: 9.5-22. Rear: 12.4-36

Dimensions
Wheelbase	84.7 inches 215 cm
Length	143.9 inches 365 cm
Width	65.2 inches 165 cm
Height (ROPS)	98.8 inches 250 cm
Height (cab)	96.9 inches 246 cm
ROPS Weight	4916 lbs 2229 kg
Cab Weight	5313 lbs 2409 kg
Ground clearance	17.9 inches 45 cm
Front tread	48 to 58.7 inches 121 to 149 cm
Rear tread	48 to 67.7 inches 121 to 171 cm

Photos

Kubota GM64 tractor photo
