Kubota L5040

The Kubota L5040 is a tractor produced by Kubota. It is equipped with a 148.5 ci 2.4 L engine. The listed engine power is Diesel (net): 50 hp / 37.3 kW; Diesel (gross): 52 hp / 38.8 kW. Transmission: Glide Shift (GST). Operating weight: 3,803 lbs 1725 kg.

Overview

	2007 - 2013 L40 SeriesCompact Utility tractor L40 Series Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor
Original price	$28,871 (2011)
The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO.

Kubota L5040 Engine
Kubota 2.4L 4-cyl diesel
Engine details ...

Kubota L5040 Transmission
12-speed
Transmission details ...

Kubota L5040 Power
Engine (gross)	52 hp 38.8 kW
Engine (net)	50 hp 37.3 kW
PTO (claimed)	44 hp 32.8 kW

Mechanical
Four-wheel drive
Differential lock	standard
Steering	hydrostatic power steering
Mechanical wet disc brakes
Two-post foldable ROPS.

Capacity
Fuel	14.3 gal 54.1 L
Hydraulic system	11.9 gal 45.0 L
Front axle	9.5 qts 9.0 L

Hydraulics
Type	open center
Capacity	11.9 gal 45.0 L
Valves	2 to 3
Pump flow	9.4 gpm 35.6 lpm
Total flow	14.1 gpm 53.4 lpm
Steering flow	4.7 gpm 17.8 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	3,680 lbs 1669 kg
Rear lift (at 24"/610mm)	2,760 lbs 1251 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
Engine RPM	540@2550
Mid PTO	semi-independent (optional)
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	75.4 inches 191 cm
Weight	3,803 lbs 1725 kg
Front tire	9.5-16
Rear tire	14.9-26
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	45
Battery CCA	582
Battery volts	12

Engine

Engine Detail — 148.5 ci / 2.4 L Diesel

Manufacturer	Kubota
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	148.5 ci 2.4 L
Bore/Stroke	3.4x4.0 inches 86 x 102 mm
Power (net)	50 hp 37.3 kW
Power (gross)	52 hp 38.8 kW
Rated RPM	2600
Starter volts	12
Oil capacity	9.9 qts 9.4 L
Coolant capacity	8.7 qts 8.2 L

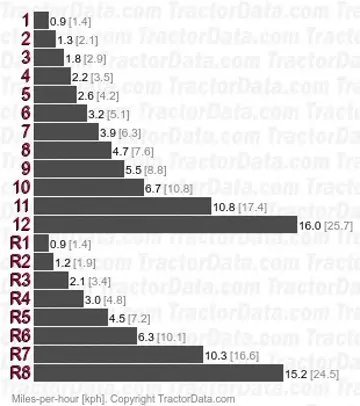

Transmission

Transmission — Glide Shift (GST)

Transmission	Glide Shift (GST)
Gears	12 forward and 8 reverse
Oil capacity	47.6 qts 45.0 L

Dimensions

Kubota L5040 Tires
Standard tires (ag)	Front: 9.5-16. Rear: 14.9-26
Optional tires (ag)	Front: 9.5-16. Rear: 14.9-26
Lawn/turf front	29x12.50-15
	305R343
Lawn/turf rear	44x18-20
	610R470
Industrial front	10-16.5
Industrial rear	17.5L-24

Dimensions
Wheelbase	75.4 inches 191 cm
Length	126.4 inches 321 cm
Width	67.3 inches 170 cm
Height (ROPS)	98 inches 248 cm
Weight	3,803 lbs 1725 kg
Ground clearance	15.7 inches 39 cm
Front tread	52.8 inches 134 cm
Rear tread	52.2 to 56.3 inches 132 to 143 cm

Attachments

Attachment overview
Snowblower
Blade
Front-end loader
Backhoe
The front-mounted sweeper and snowblower require the mid PTO.

Kubota BH92 Backhoe
Backhoe type	Kubota BH92 Backhoe
2-Foot flat digging depth	109.8 inches 278 cm
Reach from pivot	150.4 inches 382 cm
Loading height	84.3 inches 214 cm
Bucket force	4,548 lbs 2062 kg
Dipperstick force	2,698 lbs 1223 kg

Photos

Kubota L5040 tractor photo
