Kubota KL24R
The Kubota KL24R is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 23.6 hp 17.6 kW. Transmission: Glideshift. Operating weight: 2557 to 3031 pounds.
Engine Power
23.6 hp
17.6 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
Glideshift
Operating Weight
2557 to 3031 pounds
Kubota KL24R Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2012 - 2015
KL Kingwel R SeriesCompact Utility tractor |
|---|---|
2012 - 2015 | |
KL Kingwel R Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota KL24R Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Kubota KL24R Power | |
|---|---|
Engine | 23.6 hp
17.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 541@2700 |
763@2700 | |
945@2700 | |
1260@2700 | |
-945@2700 | |
Dimensions & Tires | |
|---|---|
ROPS Wheelbase | 61 inches
154 cm |
Cab Wheelbase | 63 inches
160 cm |
Weight | 2557 to 3031 pounds |
Front tire | 7-14 |
Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.27x3.64 inches
83 x 92 mm |
Power | 23.6 hp
17.6 kW |
Rated RPM | 2700 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
16-speed | |
16-speed power shift | |
24-speed | |
30-speed |

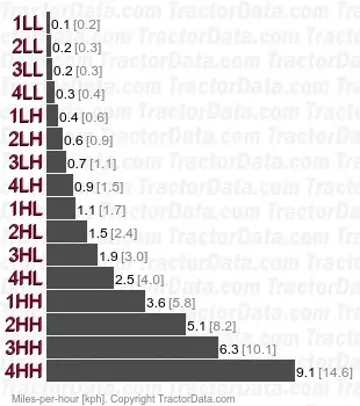

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Clutch | dry disc |
Four gears(1-4) in two ranges, with additional creeper range and shuttle shift. | |
 | |
Transmission — Glideshift
Transmission | Glideshift |
Type | power shift |
Gears | 16 forward and reverse |
Eight hydraulically-shifted gears in two ranges. | |
Transmission — 24 forward and 16 reverse
Gears | 24 forward and 16 reverse |
Twelve hydraulically-shift gears (eight in reverse) in two ranges. Only available on the KL24R with cab. | |
Transmission | |
Gears | 30 forward and 20 reverse |
Three range transmission. Twelve forward, eight reverse, in creeper and medium range. Six forward, four reverse, in high-speed range. | |
Dimensions
Kubota KL24R Tires | |
|---|---|
Standard tires (ag) | Front: 7-14. Rear: 9.5-24 |
Dimensions | |
|---|---|
ROPS Wheelbase | 61 inches
154 cm |
Cab Wheelbase | 63 inches
160 cm |
ROPS Length | 116.7 inches
296 cm |
Cab Length | 118.7 inches
301 cm |
ROPS Width | 49 inches
124 cm |
Cab Width | 53.2 inches
135 cm |
Height (ROPS) | 78.4 inches
199 cm |
Height (cab) | 80.5 inches
204 cm |
ROPS Weight | 2557 lbs
1159 kg |
Cab Weight | 3031 lbs
1374 kg |
Ground clearance | 13.8 inches
35 cm |
Front tread | 40.2 inches
102 cm |
Rear tread | 39.8/44.5 inches
101/113 cm |
