Kubota KL410 Hi-Speed
The Kubota KL410 Hi-Speed is a tractor produced by Kubota. It is equipped with a 134.1 ci 2.2 L engine. The rated power output is 41.4 hp 30.9 kW. Transmission: 30 forward and 20 reverse. Operating weight: 3395 to 3792 pounds.
Engine Power
41.4 hp
30.9 kW
Fuel & Capacities
10.6 gal
40.1 L
Transmission
30 forward and 20 reverse
Operating Weight
3395 to 3792 pounds
Kubota KL410 Hi-Speed Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2006 - 2007
KL SeriesCompact Utility tractor |
|---|---|
2006 - 2007 | |
KL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota KL410 Engine | |
|---|---|
Kubota 2.2L 4-cyl diesel | |
Fuel tank | 10.6 gal
40.1 L |
Engine details ...  | |
Kubota KL410 Power | |
|---|---|
Engine | 41.4 hp
30.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2600 |
762@2600 | |
944@2600 | |
1258@2600 | |
-944@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 74.4 inches
188 cm |
Weight | 3395 to 3792 pounds |
Front tire | 8-18 |
Rear tire | 13.6-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 134.1 ci / 2.2 L Diesel
Manufacturer | Kubota V2203 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 134.1 ci
2.2 L |
Bore/Stroke | 3.43x3.64 inches
87 x 92 mm |
Power | 41.4 hp
30.9 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
20-speed | |
30-speed |

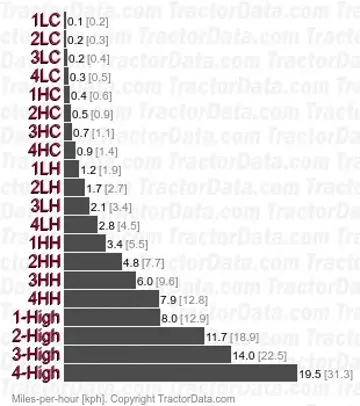

Transmission — 20 forward and reverse
Gears | 20 forward and reverse |
Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed). | |
 | |
Transmission | |
Gears | 30 forward and 20 reverse |
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available. | |
Dimensions
Kubota KL410 Tires | |
|---|---|
Standard tires (ag) | Front: 8-18. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 74.4 inches
188 cm |
Length | 135.6 inches
344 cm |
Width | 58.9 inches
149 cm |
Height (ROPS) | 91.3 inches
231 cm |
Height (cab) | 84.7 inches
215 cm |
ROPS Weight | 3395 lbs
1539 kg |
Cab Weight | 3792 lbs
1720 kg |
Ground clearance | 15.8 inches
40 cm |
Front tread | 47.2 inches
119 cm |
Rear tread | 44.9 to 56.3 inches
114 to 143 cm |
