Kubota KL430

The Kubota KL430 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 42.4 hp 31.6 kW. Transmission: 24 forward and 16 reverse. Operating weight: 3329 to 3726 pounds.

Overview

	2006 - 2007 KL SeriesCompact Utility tractor
2006 - 2007
KL Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Kubota KL430 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank	10.6 gal 40.1 L
Engine details ...

Kubota KL430 Power
Engine	42.4 hp 31.6 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post ROPS. Cab optional.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	553@2800
	779@2800
	966@2800
	1287@2800
	-966@2800

Dimensions & Tires
Wheelbase	75.2 inches 191 cm
Weight	3329 to 3726 pounds
Front tire	8-18
Rear tire	13.6-26
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 91.5 ci / 1.5 L Diesel

Manufacturer	Kubota D1503
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.5 ci 1.5 L
Bore/Stroke	3.27x3.64 inches 83 x 92 mm
Power	42.4 hp 31.6 kW
Rated RPM	2800
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed
24-speed

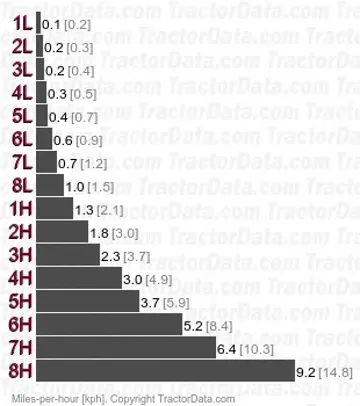

Transmission — 16 forward and reverse

Gears	16 forward and reverse
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.
Transmission
Gears	24 forward and 16 reverse
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse.

Dimensions

Kubota KL430 Tires
Standard tires (ag)	Front: 8-18. Rear: 13.6-26

Dimensions
Wheelbase	75.2 inches 191 cm
Length	136.6 inches 346 cm
Width	58.7 inches 149 cm
Height (ROPS)	78 inches 198 cm
Height (cab)	78.2 inches 198 cm
ROPS Weight	3329 lbs 1510 kg
Cab Weight	3726 lbs 1690 kg
Ground clearance	14.4 inches 36 cm
Front tread	46.5 inches 118 cm
Rear tread	44.9 to 56.3 inches 114 to 143 cm
