Kubota L3240
The Kubota L3240 is a tractor produced by Kubota. It is equipped with a 100.5 ci 1.6 L engine. The listed engine power is Diesel (net): 32 hp / 23.9 kW; Diesel (gross): 34 hp / 25.4 kW. Transmission: Glide Shift (GST). Operating weight: 463 lbs 210 kg.
Engine Power
Diesel (net): 32 hp / 23.9 kW; Diesel (gross): 34 hp / 25.4 kW
Fuel & Capacities
11.6 gal
43.9 L
Transmission
Glide Shift (GST)
Operating Weight
463 lbs
210 kg
Overview
 | 2007 - 2013
L40 SeriesCompact Utility tractor
L40 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Original price was $17,000 in 2011 | |
The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO. | |
Variants | |
|---|---|
L3240F | 2WD |
L3240DT | 4WD |
L3240GST | 4WD, 12 speed |
L3240HST | hydro |
L3240HSTC | hydro cab |
Kubota L3240 Engine | |
|---|---|
Kubota 1.6L 3-cyl diesel | |
Engine details ...  |
Kubota L3240 Power | |
|---|---|
Engine (gross) | 34 hp
25.4 kW |
Engine (net) | 32 hp
23.9 kW |
Gear PTO (claimed) | 26.5 hp
19.8 kW |
Hydro PTO (claimed) | 25 hp
18.6 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power steering |
Wet disc brakes | |
Two-post ROPS. Grand cab on L3240HSTC. Optional radio/CD player. | |
Capacity | |
|---|---|
Fuel | 11.6 gal
43.9 L |
Hydraulic system | 11.1 gal
42.0 L |
Front axle | 6.9 qts
6.5 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 11.1 gal
42.0 L |
Valves | 2 to 3 |
Pump flow | 8.3 gpm
31.4 lpm |
Total flow | 13.2 gpm
50.0 lpm |
Steering flow | 4.9 gpm
18.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 3,750 lbs
1701 kg |
Rear lift (at 24"/610mm) | 2,650 lbs
1202 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Engine RPM | 540@2550 |
Mid PTO | semi-independent *Optional. |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
4WD Wheelbase | 71.1 inches
180 cm |
2WD Wheelbase | 71.3 inches
181 cm |
Weight | 3153 to 3748 pounds |
Front tire | 6.00-16 |
2WD Rear tire | 12.4-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 40 |
55 (cab) | |
Battery CCA | 490 |
Battery volts | 12 |
Engine
Engine Detail — 100.5 ci / 1.6 L Diesel
Manufacturer | Kubota |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 100.5 ci
1.6 L |
Bore/Stroke | 3.34x inches
85 x 91 mm |
Power (net) | 32 hp
23.9 kW |
Power (gross) | 34 hp
25.4 kW |
Rated RPM | 2700 |
Starter volts | 12 |
Oil capacity | 6 qts
5.7 L |
Coolant capacity | 6.3 qts
6.0 L |
Transmission
Transmission options | |
|---|---|
hydrostatic | |
8-speed | |
12-speed |
Transmission — HST Plus
Transmission | HST Plus |
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Oil capacity | 44.4 qts
42.0 L |
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased. | |
 | |

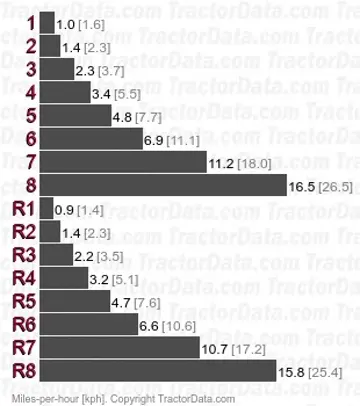

Transmission — FST sync shuttle
Transmission | FST sync shuttle |
Gears | 8 forward and reverse |
Oil capacity | 44.4 qts
42.0 L |
Four gears (1-4) in two ranges (Low/High) with shuttle. | |
 | |

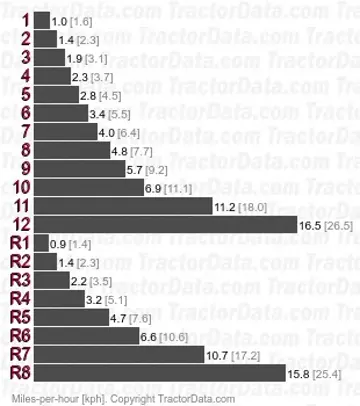

Transmission — Glide Shift (GST)
Transmission | Glide Shift (GST) |
Gears | 12 forward and 8 reverse |
Oil capacity | 44.4 qts
42.0 L |
 | |
Dimensions
Kubota L3240 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.00-16. Rear: 12.4-24 |
4WD Standard tires (ag) | Front: 7.2-16. Rear: 12.4-24 |
2WD Optional tires (ag) | Front: 7.5Lx15. Rear: 12.4x24 |
Lawn/turf front | 27x8.50-15 |
27-10.50LLx15 | |
29x12.50-15 | |
Lawn/turf rear | 355/80-D20 |
41-18LLXx16.1 | |
41x18--20 | |
Industrial front | 10x16.5 (4WD) |
Industrial rear | 420/70-24 (4WD) |
Dimensions | |
|---|---|
4WD Wheelbase | 71.1 inches
180 cm |
2WD Wheelbase | 71.3 inches
181 cm |
4WD Length | 114.8 inches
291 cm |
2WD Length | 119.3 inches
303 cm |
Width | 59.8 inches
151 cm |
Height | 90.7 inches
230 cm |
Ground clearance | 14 inches
35 cm |
2WD Front tread | 47.6 to 59.4 inches
120 to 150 cm |
4WD Front tread | 45.5 inches
115 cm |
Rear tread | 47.2 to 58.3 inches
119 to 148 cm |
Kubota L3240 Weight | |
|---|---|
2WD ROPS | 3153 lbs
1430 kg |
4WD ROPS | 3395 lbs
1539 kg |
4WD Cab | 3748 lbs
1700 kg |
Attachments
Attachment overview | |
|---|---|
72" mid-mount mower deck | |
Snowblower | |
Blade | |
Kubota LA514 loader | |
Kubota LA724 loader | |
Backhoe | |
The mid-mount mower and front-mount snowblower require the optional mid PTO. Additional Kubota-specified attachments included a 60-inch rotary tiller and 72-inch front-mount broom. |
72" Mower deck | |
|---|---|
Type | mid-mount Kubota RC72 |
3-blade | |
Cutting width | 72 inches
182 cm |
Weight | 463 lbs
210 kg |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Kubota BH76 Backhoe | |
|---|---|
Backhoe type | Kubota BH76 Backhoe |
2-Foot flat digging depth | 91 inches
231 cm |
Reach from pivot | 120.5 inches
306 cm |
Loading height | 64.4 inches
163 cm |
Bucket force | 3,339 lbs
1514 kg |
Dipperstick force | 2,097 lbs
951 kg |
Kubota BH77 Backhoe | |
|---|---|
Backhoe type | Kubota BH77 Backhoe |
2-Foot flat digging depth | 92.5 inches
234 cm |
Reach from pivot | 124.2 inches
315 cm |
Loading height | 67.2 inches
170 cm |
Bucket force | 3,421 lbs
1551 kg |
Dipperstick force | 2,190 lbs
993 kg |
Kubota BH92 Backhoe | |
|---|---|
Backhoe type | Kubota BH92 Backhoe |
2-Foot flat digging depth | 109.8 inches
278 cm |
Reach from pivot | 150.4 inches
382 cm |
Loading height | 84.3 inches
214 cm |
Bucket force | 4,548 lbs
2062 kg |
Dipperstick force | 2,698 lbs
1223 kg |
Photos
Kubota L3240
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota L3240.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
