Kubota L1-24

The Kubota L1-24 is a tractor produced by Kubota. It is equipped with a 89.2 ci 1.5 L engine. The rated power output is 23.7 hp 17.7 kW. Transmission: 16 forward and reverse. Operating weight: 2183 to 2359 pounds.

Overview

	1983 - 1985 L1 SeriesCompact Utility tractor
1983 - 1985
L1 Series
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
L1-24DT	4WD

Kubota L1-24 Engine
Kubota 1.5L 3-cyl diesel
Fuel tank	7.7 gal 29.1 L
Engine details ...

Kubota L1-24 Transmission
16-speed shuttle
Transmission details ...

Kubota L1-24 Power
Engine	23.7 hp 17.7 kW

Mechanical
Two- or four-wheel drive
Wet disc brakes
Open operator station.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/770/940/1250 (1.375)

Dimensions & Tires
Wheelbase	61 inches 154 cm
Weight	2183 to 2359 pounds
Front tire	5.00-15
2WD Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Instruction Manual L1 (31351-1921-6)

Engine

Engine Detail — 89.2 ci / 1.5 L Diesel

Manufacturer	Kubota D1462
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	89.2 ci 1.5 L
Bore/Stroke	3.4x3.2 inches 86 x 81 mm
Power	23.7 hp 17.7 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

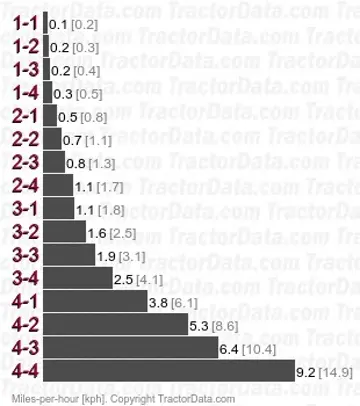

Transmission — 16 forward and reverse shuttle

Type	shuttle
Gears	16 forward and reverse
Clutch	dry disc
Four gears in four ranges with shuttle shift.

Dimensions

Kubota L1-24 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 11.2-24
4WD Standard tires (ag)	Front: 7-16. Rear: 11.2-24

Dimensions
Wheelbase	61 inches 154 cm
Length	115.8 inches 294 cm
Width	52 inches 132 cm
Height	77.8 inches 197 cm
2WD Weight	2183 lbs 990 kg
4WD Weight	2359 lbs 1070 kg
2WD Ground clearance	14.6 inches 37 cm
4WD Ground clearance	12.4 inches 31 cm
2WD Front tread	38.6 to 44.9 inches 98 to 114 cm
4WD Front tread	41.3 inches 104 cm
Rear tread	40.2 to 52 inches 102 to 132 cm
