Kubota L3010
The Kubota L3010 is a tractor produced by Kubota. It is equipped with a 91.5 ci 1.5 L engine. The listed engine power is Diesel (net): 30.4 hp / 22.7 kW; Diesel (gross): 32.1 hp / 23.9 kW. Transmission: Glide Shift (GST). Operating weight: 476 lbs 215 kg.
Engine Power
Diesel (net): 30.4 hp / 22.7 kW; Diesel (gross): 32.1 hp / 23.9 kW
Fuel & Capacities
9.2 gal
34.8 L
Transmission
Glide Shift (GST)
Operating Weight
476 lbs
215 kg
Overview
 | 1998 - 2002
Grand L10 SeriesCompact Utility tractor
Grand L10 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
L3010F | 2WD Gear |
L3010DT | 4WD Gear |
L3010GST | 4WD Glide Shift |
L3010HST | 4WD Hydro |
Kubota L3010 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Engine details ...  |
Kubota L3010 Power | |
|---|---|
Engine (gross) | 32.1 hp
23.9 kW |
Engine (net) | 30.4 hp
22.7 kW |
Gear PTO (claimed) | 25.5 hp
19.0 kW |
Hydro PTO (claimed) | 24 hp
17.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post ROPS. | |
Capacity | |
|---|---|
Fuel | 9.2 gal
34.8 L |
Hydraulic system | 10.3 gal
39.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 10.3 gal
39.0 L |
Pump flow | 7.0 gpm
26.5 lpm |
Steering flow | 4.7 gpm
17.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control and optional draft control |
Rear lift (at 24"/610mm) | 2,200 lbs
997 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Mid PTO | semi-independent |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 65.7 inches
166 cm |
Weight | 2700 to 2745 pounds |
Front tire | 5.00-15 |
Rear tire | 12.4-24 (2WD) |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 40 |
Battery CCA | 520 |
Battery volts | 12 |
References | |
|---|---|
 | |
1999 Products published by Kubota | |
L3010/L3410/L3710/L4310 published in 1999, by Kubota | |
L3010/L3410/L3710/L4310 published in 1999, by Kubota | |
L3010/L3410/L3710/L4310/L4610 published in 2000, by Kubota |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Kubota E-TVCS D1503 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Bore/Stroke | 3.268x3.638 inches
83 x 92 mm |
Power (net) | 30.4 hp
22.7 kW |
Power (gross) | 32.1 hp
23.9 kW |
Fuel system | indirect injection |
Pre-heating | glow plugs |
Rated RPM | 2700 |
Starter volts | 12 |
Coolant capacity | 7.4 qts
7.0 L |
Transmission
Transmission options | |
|---|---|
8-speed mechanical shuttle | |
hydrostatic | |
8-speed automatic fully synchronized | |
16-speed creeper |

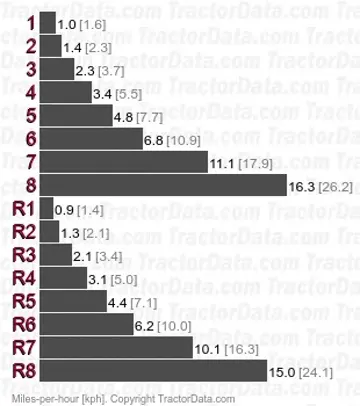

Transmission — FST
Transmission | FST |
Type | mechanical shuttle |
Gears | 8 forward and reverse |
Clutch | dry disc |
Four synchronized gears in two ranges. Synchronized shuttle shifting. | |
 | |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
 | |
Transmission — Glide Shift (GST)
Transmission | Glide Shift (GST) |
Type | automatic fully synchronized |
Gears | 8 forward and reverse |
Clutch | dry disc |
The Glide Shift allows clutchless automatic shifting between gears. | |
 | |

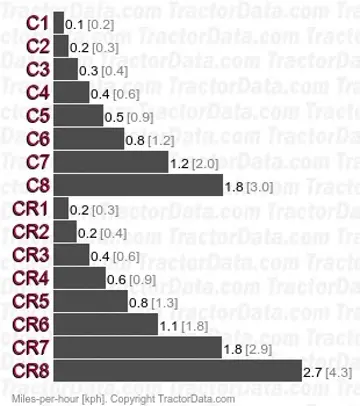

Transmission — 16 forward and reverse creeper
Type | creeper |
Gears | 16 forward and reverse |
Optional creeper range available for the FST or GST transmission. | |
 | |
Dimensions
Kubota L3010 Tires | |
|---|---|
Standard tires (ag) | Front: 5.00-15. Rear: 12.4-24 (2WD) |
Front: 7.2-16. Rear: 12.4-24 (4WD) | |
Dimensions | |
|---|---|
Wheelbase | 65.7 inches
166 cm |
Length | 110.8 inches
281 cm |
Width | 56.7 inches
144 cm |
Height (ROPS) | 84.3 inches
214 cm |
Ground clearance | 13.8 inches
35 cm |
Front tread | 43.5 inches
110 cm |
Rear tread | 44.1/48.0/51.4/55.3 inches
112/121/130/140 cm |
Kubota L3010 Weight | |
|---|---|
DT | 2,700 lbs
1224 kg |
GST | 2,720 lbs
1233 kg |
HST | 2,745 lbs
1245 kg |
Attachments
Attachment overview | |
|---|---|
72" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe | |
Advertised attachments for the L3010 included 60-inch rear-mount finish mowers (RCR60-CA), 60 or 72-inch rotary cutters (L360CA/L372CA), tillers (FL1021C, FL1271C/RS, FL1521C, L60CA), post-hole diggers (BL80A), box scrapers (L7554), and 60-inch front-mount rotary brooms (L2062A). |
72" Mower deck | |
|---|---|
Type | mid-mount Kubota RC72-29A |
3-blade with hydraulic lift | |
Cutting width | 72 inches
182 cm |
Weight | 476 lbs
215 kg |
Overall width | 88.6 inches
225 cm |
Cut height | 1.5 to 3.5 inch
3 to 8 cm |
Kubota BL4690 Backhoe | |
|---|---|
Backhoe type | Kubota BL4690 Backhoe |
Bucket width | 10 inches
25 cm |
12 inches
30 cm | |
16 inches
40 cm | |
24 inches
60 cm | |
Digging depth | 90.2 inches
229 cm |
Reach from pivot | 116.5 inches
295 cm |
Loading height | 75.5 inches
191 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 2,950 lbs
1338 kg |
Dipperstick force | 1,740 lbs
789 kg |
Photos
Kubota L3010
Kubota L3010
Kubota L3010
Kubota L3010 with LA481 front-end loader.
Kubota L3010 with LA481 front-end loader.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota L3010.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
