Kubota GL25
The Kubota GL25 is a tractor produced by Kubota. It is equipped with a 89.3 ci 1.5 L engine. The rated power output is 24.7 hp 18.4 kW. Transmission: 16 forward and reverse. Operating weight: 2491 lbs 1129 kg.
Engine Power
24.7 hp
18.4 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
16 forward and reverse
Operating Weight
2491 lbs
1129 kg
Kubota GL25 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1990 - 1992
GL SeriesCompact Utility tractor |
|---|---|
1990 - 1992 | |
GL Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Kubota GL25 Engine | |
|---|---|
Kubota 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Kubota GL25 Power | |
|---|---|
Engine | 24.7 hp
18.4 kW |
PTO (claimed) | 23.1 hp
17.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Mechanical wet disc brakes | |
Open operator station. |
Hydraulics | |
|---|---|
Pump flow | 5.6 gpm
21.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 2061 lbs
934 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 568/803/985/1304 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 64.8 inches
164 cm |
Weight | 2491 lbs
1129 kg |
Front tire | 7-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 89.3 ci / 1.5 L Diesel
Manufacturer | Kubota D1463 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 89.3 ci
1.5 L |
Bore/Stroke | 3.23x3.64 inches
82 x 92 mm |
Power | 24.7 hp
18.4 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Kubota GL25 Engine | |
|---|---|
 | |
Image courtesy of Agro-Engineering |
Transmission
Transmission options | |
|---|---|
16-speed gear | |
16-speed power shift |

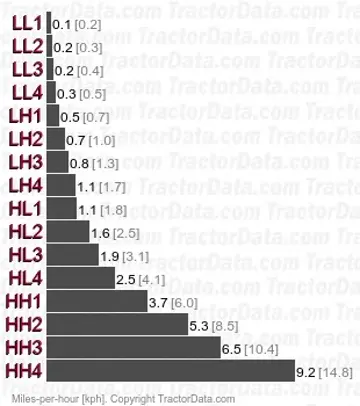

Transmission — 16 forward and reverse gear
Type | gear |
Gears | 16 forward and reverse |
Four gears (1-4) in low/high ranges plus a creeper/field range shift with shuttle. | |
 | |
Transmission — 16 forward and reverse power shift
Type | power shift |
Gears | 16 forward and reverse |
Eight power shift gears in two ranges with shuttle. | |
Dimensions
Kubota GL25 Tires | |
|---|---|
Standard tires (ag) | Front: 7-16. Rear: 11.2-24 |
Dimensions | |
|---|---|
Wheelbase | 64.8 inches
164 cm |
Length | 120.1 inches
305 cm |
Width | 53.2 inches
135 cm |
Height | 57.3 inches
145 cm |
Weight | 2491 lbs
1129 kg |
Ground clearance | 13.6 inches
34 cm |
Front tread | 42.5 inches
107 cm |
Rear tread | 41.3 to 53 inches
104 to 134 cm |
Photos
Kubota GL25
Kubota GL25
