Kubota L4200

1994 - 1999

Grand L Series

Compact Utility tractor

Manufacturer

Kubota

Compact Utility tractor

Kubota 2.2L 4-cyl diesel

Engine (gross)

45.3 hp 33.8 kW

Engine (net)

42 hp 31.3 kW

PTO (claimed)

37 hp 27.6 kW

Plows

2 (14-inch)

Drive

4x2 2WD

4x4 MFWD 4WD (optional)

Power steering

Wet disc brakes

Two-post ROPS. Cab optional with heat and air-conditioning.

Fuel

9.2 gal 34.8 L

Hydraulic system

10.3 gal 39.0 L

Type

open center

Capacity

10.3 gal 39.0 L

Pressure

2490 psi 171.7 bar

Pump flow

7.8 gpm 29.5 lpm

Rear Type

I

Control

position control

Rear lift (at ends)

2,870 lbs 1301 kg

Rear lift (at 24"/610mm)

2,310 lbs 1047 kg

Rear PTO

independent

Rear PTO Type

540 (1.375)

Engine RPM

540@2447

2WD Wheelbase

71.3 inches 181 cm

4WD Wheelbase

71.1 inches 180 cm

Weight

2875 to 3500 pounds

Front tire

6.00-16:14.9-24

Ground

negative

Battery CCA

447

Battery volts

12

Backhoes published in 1994, by Kubota

Front Loaders B, L and M-Series published in 1994, by Kubota*

Americans on Kubota published in 2000

L2900/L3300/L3600/L4200 published in 1996, by Kubota

*Publication contains known errors.

Manufacturer

Kubota V2203

Fuel Type

Diesel

Configuration

4-cylinder, liquid-cooled

Displacement

134.1 ci 2.2 L

Bore/Stroke

3.4x3.6 inches 86 x 91 mm

Power (net)

42 hp 31.3 kW

Power (gross)

45.3 hp 33.8 kW

Fuel system

indirect injection

Rated RPM

2600

Torque

102.9 lb-ft 139.5 Nm

Starter volts

12

Coolant capacity

7.9 qts 7.5 L

Oil capacity

6.3 qts 6.0 L

Oil change

100 h

8-speed synchronized shuttle

8-speed power shuttle

Transmission

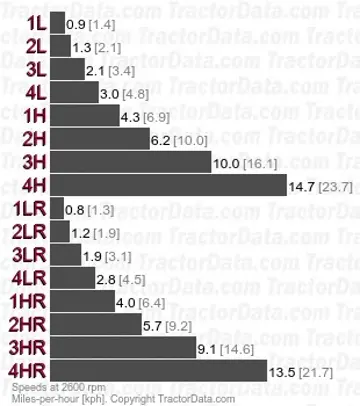

FST

Type

synchronized shuttle

Gears

8 forward and reverse

Clutch

dry disc

Oil capacity

41.2 qts 39.0 L

Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever. Gear shifts (1-4) are synchronized using the foot clutch. Shuttle shifting is also synchronized using the clutch. The tractor must be stopped, and clutch used, to shift ranges.

With 14.9-24 rear tires.

Transmission

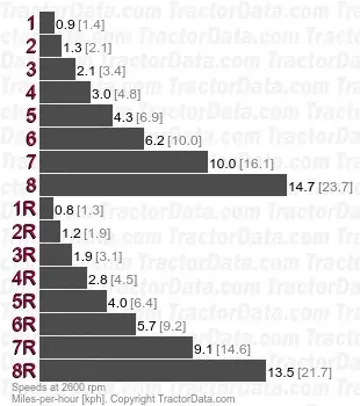

Glide Shift (GST)

Type

power shuttle

Gears

8 forward and reverse

Clutch

dry disc

Oil capacity

41.2 qts 39.0 L

Eight-speed gear shift (1-8) with left-hand shuttle lever. Power shuttle shifting without need for the clutch. The transmission can be shifted (without the clutch) by sequentially shifting up through the gears.

With 14.9-24 rear tires.

Ag front

6.00-16:14.9-24 (2WD)

8.3-16:14.9-24 (4WD)

2WD Wheelbase

71.3 inches 181 cm

4WD Wheelbase

71.1 inches 180 cm

Length

118.9 inches 302 cm

Width

62.4 inches 158 cm

Height (steering wheel)

60.4 inches 153 cm

Height (ROPS)

84.4 inches 214 cm

Ground clearance

14.6 inches 37 cm

Front tread

45.1/49/53/56.9 inches 114/124/134/144 cm (2WD)

Front tread

45.5 inches 115 cm (4WD)

Rear tread

42.5/46.4/47.2/51.2/57.1/60.8 inches 107/117/119/130/145/154 cm

2WD ROPS

2,875 lbs 1304 kg

4WD ROPS

3,030 lbs 1374 kg

Cab

3,500 lbs 1587 kg

Max Drawbar

1,430 lbs 648 kg

Blade

Kubota LA680 loader

Kubota LA681 loader

Backhoe

Mid-mount mowers were not listed for the L4200. Rear-mount rotary mowers up to 72-inches were specified. Tillers size was 60 inches. Box blade were specified up to 66 inches, or rear blades up to 72 inches.

Backhoe type

Kubota BL4690 Backhoe

Transport height

76.5 inches 194 cm

Bucket width

10 inches 25 cm

12 inches 30 cm

16 inches 40 cm

24 inches 60 cm

Digging depth

90.2 inches 229 cm

Reach from pivot

116.5 inches 295 cm

Loading height

75.5 inches 191 cm

Bucket Rotation

180°

Swing Arc

180°

Bucket force

2950 lbs 1338 kg

Dipperstick force

1740 lbs 789 kg
