Kubota M135A

The Kubota M135A is a tractor produced by Kubota. It is equipped with a 373.7 ci 6.1 L engine. The rated power output is 133.2 hp 99.3 kW. Transmission: 16 forward and reverse. Operating weight: 9744 lbs 4419 kg.

Overview

	2009 - 2013 Grandom A SeriesUtility tractor
2009 - 2013
Grandom A Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor

Kubota M135A Engine
Kubota 6.1L 4-cyl diesel
Fuel tank	50.2 gal 190.0 L
Engine details ...

Kubota M135A Transmission
16-speed power shift
Transmission details ...

Kubota M135A Power
Engine	133.2 hp 99.3 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Tractor hitch
Rear Type	II
Control	position and electronic draft control
Rear lift	12787 lbs 5800 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@1994
	1000@2050

Dimensions & Tires
Wheelbase	105.9 inches 268 cm
Weight	9744 lbs 4419 kg
Front tire	420/70R24
Rear tire	520/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 373.7 ci / 6.1 L Diesel

Manufacturer	Kubota V6108-TI
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	373.7 ci 6.1 L
Bore/Stroke	4.65x5.51 inches 118 x 140 mm
Power	133.2 hp 99.3 kW
Fuel system	direct injection
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

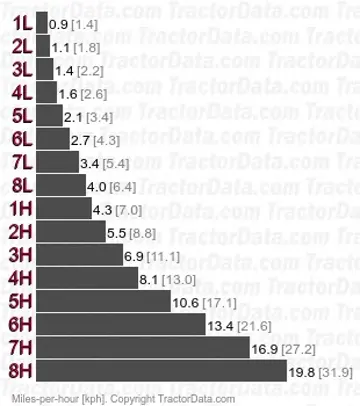

Transmission — 16 forward and reverse power shift

Type	power shift
Gears	16 forward and reverse
Eight power-shift gears in two ranges with shuttle.

Dimensions

Kubota M135A Tires
Standard tires (ag)	Front: 420/70R24. Rear: 520/70R38

Dimensions
Wheelbase	105.9 inches 268 cm
Length	172.8 inches 438 cm
Width	88.6 inches 225 cm
Height	107.5 inches 273 cm
Weight	9744 lbs 4419 kg
Ground clearance	18.3 inches 46 cm
Front tread	68.9/72.8 inches 175/184 cm
Rear tread	68.1 to 81.1 inches 172 to 205 cm
