Kubota M110G
The Kubota M110G is a tractor produced by Kubota. It is equipped with a 230 ci 3.8 L engine. The rated power output is 108.5 hp 80.9 kW. Transmission: 32 forward and reverse. Operating weight: 8179 lbs 3709 kg.
Engine Power
108.5 hp
80.9 kW
Fuel & Capacities
50.2 gal
190.0 L
Transmission
32 forward and reverse
Operating Weight
8179 lbs
3709 kg
Kubota M110G Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2014 -
Globe SeriesUtility tractor |
|---|---|
2014 - | |
Globe Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Variants | |
|---|---|
M110G | wheeled[9743] |
M110G-PC | half-track crawler |
Kubota M110G Engine | |
|---|---|
Kubota 3.8L 4-cyl diesel | |
Fuel tank | 50.2 gal
190.0 L |
Engine details ...  | |
Kubota M110G Power | |
|---|---|
Engine | 108.5 hp
80.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@2405 |
1000@2529 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.9 inches
243 cm |
Weight | 8179 lbs
3709 kg |
Front tire | 13.6-24 |
Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | Kubota V3800-CR-TIE4 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Power | 108.5 hp
80.9 kW |
Fuel system | direct injection |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
24-speed power shift | |
32-speed creeper |

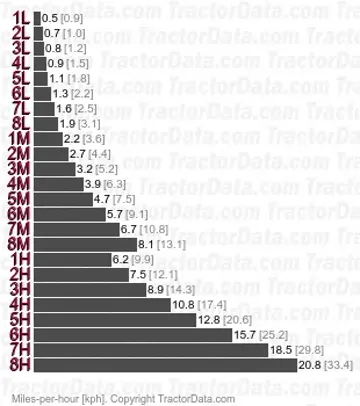

Transmission — 24 forward and reverse power shift
Type | power shift |
Gears | 24 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in three ranges with shuttle. | |
 | |
Transmission — 32 forward and reverse creeper
Type | creeper |
Gears | 32 forward and reverse |
Optional creeper adds an additional 8-speed range to the standard transmission. | |
 | |
Dimensions
Kubota M110G Tires | |
|---|---|
Standard tires (ag) | Front: 13.6-24. Rear: 16.9-38 |
Dimensions | |
|---|---|
Wheelbase | 95.9 inches
243 cm |
Length | 168.1 inches
426 cm |
Width | 82.7 inches
210 cm |
Height | 111.8 inches
283 cm |
Weight | 8179 lbs
3709 kg |
Ground clearance | 18.9 inches
48 cm |
Front tread | 60.2 inches
152 cm |
Rear tread | 60.2 to 79.1 inches
152 to 200 cm |
