Kubota M135G
The Kubota M135G is a tractor produced by Kubota. It is equipped with a 373.7 ci 6.1 L engine. The listed engine power is Diesel (listed): 133.2 hp / 99.3 kW. Transmission: 32 forward and reverse. Operating weight: 9844 lbs 4465 kg.
Engine Power
Diesel (listed): 133.2 hp / 99.3 kW
Fuel & Capacities
50.2 gal
190.0 L
Transmission
32 forward and reverse
Operating Weight
9844 lbs
4465 kg
Overview
 | 2014 -
Globe SeriesUtility tractor |
|---|---|
2014 - | |
Globe Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Utility tractor | |
Kubota M135G Engine | |
|---|---|
Kubota 6.1L 4-cyl diesel | |
Fuel tank | 50.2 gal
190.0 L |
Engine details ...  | |
Kubota M135G Power | |
|---|---|
Engine | 133.2 hp
99.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and electronic draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1994 |
1000@2050 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Weight | 9844 lbs
4465 kg |
Front tire | 420/70R24 |
Rear tire | 520/70R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 373.7 ci / 6.1 L Diesel
Manufacturer | Kubota V6108-CR-TIE4 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 373.7 ci
6.1 L |
Bore/Stroke | 4.65x5.51 inches
118 x 140 mm |
Power | 133.2 hp
99.3 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
24-speed power shift | |
32-speed creeper |

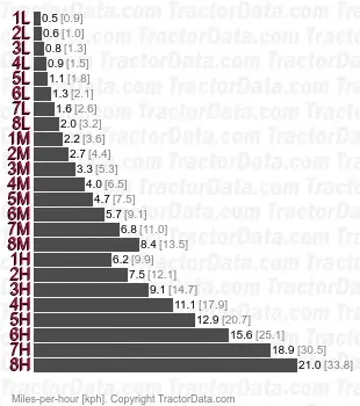

Transmission — 24 forward and reverse power shift
Type | power shift |
Gears | 24 forward and reverse |
Clutch | hydraulic wet disc |
Eight power-shift gears in three ranges with shuttle. | |
 | |
Transmission — 32 forward and reverse creeper
Type | creeper |
Gears | 32 forward and reverse |
Optional creeper adds an additional 8-speed range to the standard transmission. | |
 | |
Dimensions
Kubota M135G Tires | |
|---|---|
Standard tires (ag) | Front: 420/70R24. Rear: 520/70R38 |
Dimensions | |
|---|---|
Wheelbase | 105.9 inches
268 cm |
Length | 171.8 inches
436 cm |
Width | 88.8 inches
225 cm |
Height | 113.2 inches
287 cm |
Weight | 9844 lbs
4465 kg |
Ground clearance | 18.7 inches
47 cm |
Front tread | 68.9/72.8 inches
175/184 cm |
Rear tread | 68.1 to 81.1 inches
172 to 205 cm |
Photos
Kubota M135G tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota M135G based on its 133.2 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota M135G.
Estimated Continuous Field Runtime: 7.2 hrs
Approximately 7.2 hours of continuous field operation at ~75% rated power on a full tank (50.2 gal / 190 L).
Estimated 75% Load Fuel Burn~6.9 gal/hr (26.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Kubota M135G Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota M135G.
Converted Equivalents:
Horsepower (HP)133.2 hp
Kilowatts (kW)99.3 kW
Metric Horsepower (PS / CV)135 PS
