Kubota M135X

The Kubota M135X is a tractor produced by Kubota. It is equipped with a 373.7 ci 6.1 L engine. The rated power output is 135 hp 100.7 kW. Transmission: Intell-Shift Creeper. Operating weight: 10,141 lbs 4599 kg.

Overview

	2009 - 2014 Row-Crop tractor
2009 - 2014
Row-Crop tractor

Production
Manufacturer	Kubota
Row-Crop tractor
Original price	$69,644 (2011)

Variants
M135XDTC	standard front axle
M135XDTSC	front-axle suspension

Kubota M135X Engine
Kubota 6.1L 4-cyl diesel
Engine details ...

Kubota M135X Power
Engine (net)	135 hp 100.7 kW
PTO (claimed)	118 hp 88.0 kW
Drawbar (tested)	103.87 hp 77.5 kW
PTO (tested)	123.20 hp 91.9 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Steering	hydrostatic power
Hydraulic wet disc brakes
Cab standard with heat and air-conditioning. Optional radio/CD-player.

Capacity
Fuel	50.2 gal 190.0 L
Hydraulic system	15.8 gal 59.8 L
Front axle	17.5 qts 16.6 L

Hydraulics
Type	open center
Capacity	15.8 gal 59.8 L
Valves	2 to 4
Pump flow	20.4 gpm 77.2 lpm
Total flow	35.7 gpm 135.1 lpm
Steering flow	15.3 gpm 57.9 lpm

Tractor hitch
Rear Type	II
Rear lift (at ends)	5,809 lbs 2634 kg
Rear lift (at 24"/610mm)	5,203 lbs 2360 kg
	9,447 lbs (optional) 4285 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2035
	1000@2210

Dimensions & Tires
Wheelbase	105.9 inches 268 cm
Weight	10,141 lbs 4599 kg
Front tire	14.9R24
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	80
Battery CCA	1090
Battery volts	12

Engine

Engine Detail — 373.7 ci / 6.1 L Diesel

Manufacturer	Kubota V6108-TI-CRS
Configuration	turbocharged intercooled diesel, 4-cylinder, liquid-cooled
Displacement	373.7 ci 6.1 L
Bore/Stroke	4.65x5.51 inches 118 x 140 mm
Power (net)	135 hp 100.7 kW
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	15.4 qts 14.6 L
Coolant capacity	15.9 qts 15.0 L

Transmission

Transmission options
16-speed partial powershift
24-speed

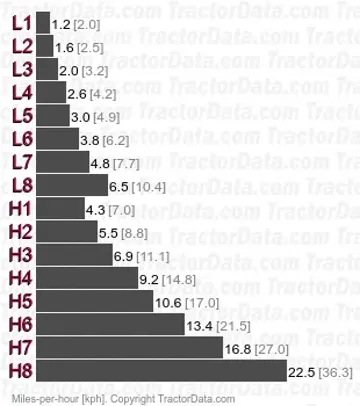

Transmission — Intelli-Shift

Transmission	Intelli-Shift
Type	partial powershift
Gears	16 forward and reverse
Clutch	electro-hydraulic wet discs
Oil capacity	63.2 qts 59.8 L
Eight-speed power shift two-range mechanical shift operated via clutch button.
Transmission	Intell-Shift Creeper
Gears	24 forward and reverse

Dimensions

Kubota M135X Tires
Standard tires (ag)	Front: 14.9R24. Rear: 18.4R38
Optional tires (ag)	Front: 420/70R24. Rear:
	Front: 520/80R38. Rear:
	Front: 13.6-24. Rear: 16.9-38

Dimensions
Wheelbase	105.9 inches 268 cm
Length	171.7 inches 436 cm
Width	89 inches 226 cm
Height	107.3 inches 272 cm
Weight	10,141 lbs 4599 kg
Ballasted weight	14,405 lbs 6534 kg
Ground clearance	24.2 inches 61 cm
Front tread	69.7 to 73.6 inches 177 to 186 cm
Rear tread	62.6 to 82.3 inches 159 to 209 cm

Tests

OCED Tractor Test 1985
Diesel 16-speed 4WD October 27 - November 4, 2010 Link: OCED Tractor Test 1985 file
PTO performance
Max power	123.20 hp 91.9 kW
Fuel use	7.6 gal/hour 28.8 l/hour
Power at rated engine speed	121.99 hp 91.0 kW
Fuel use	7.6 gal/hour 28.8 l/hour
Power at rated PTO speed	120.74 hp 90.0 kW
Fuel use	7.2 gal/hour 27.3 l/hour
Drawbar performance
Max power	103.87 hp 77.5 kW
Fuel use	7.7 gal/hour 29.1 l/hour
Max pull	14,102 lbs 6396 kg

Attachments

Attachment overview
Kubota LA2253 Height Position loader
Kubota LA2253 Power Position loader

Photos

Left-side profile of the Kubota M135X.

Kubota M135X with front loader, right side.
