Kubota T200

The Kubota T200 is a tractor produced by Kubota. It is equipped with a 85 ci 1.4 L engine. The rated power output is 19.7 hp 14.7 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1874 to 1962 pounds.

Overview

	2000 - 2002 Compact Utility tractor
2000 - 2002
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
T200	gear
T200F	4WD

Kubota T200 Engine
Kubota 1.4L 3-cyl disel
Fuel tank	7.4 gal 28.0 L
Engine details ...

Kubota T200 Power
Engine	19.7 hp 14.7 kW

Mechanical
Four-wheel drive
Two-post folding ROPS.

Tractor hitch
Rear Type	JIS-1

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	533@2500
	771@2500
	1136@2500
	-526@2500

Dimensions & Tires
Wheelbase	57.1 inches 145 cm
Weight	1874 to 1962 pounds
Front tire	6-14
Rear tire	8.3-22
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
T200-T220-T240 (T0421-1920-2) published in 2000

Engine

Engine Detail — 85 ci / 1.4 L

Manufacturer	Kubota D1403
Configuration	3-cylinder, liquid-cooled
disel
Displacement	85 ci 1.4 L
Bore/Stroke	3.1x3.6 inches 79 x 91 mm
Power	19.7 hp 14.7 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed gear
hydrostatic

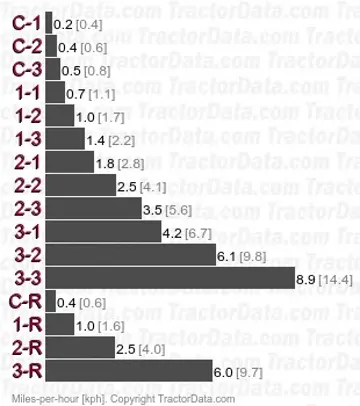

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

Kubota T200 Tires
Standard tires (ag)	Front: 6-14. Rear: 8.3-22
Optional tires (ag)	Front: 6-14. Rear: 8.3-24

Dimensions
Wheelbase	57.1 inches 145 cm
Length	110.4 inches 280 cm
Width	45.3 inches 115 cm
Height	73.8 inches 187 cm
Gear Weight	1874 lbs 850 kg
Hydro Weight	1962 lbs 889 kg
Ground clearance	11.8 inches 29 cm
Front tread	37.4 inches 94 cm
Rear tread	36.1/40.8 inches 91/103 cm
