Kubota A-175

The Kubota A-175 is a tractor produced by Kubota. It is equipped with a 61.1 ci 1.0 L engine. The rated power output is 17.3 hp 12.9 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1510 lbs 684 kg.

Overview

	1992 - 1996 Aste SeriesSub-Compact Utility tractor
1992 - 1996
Aste Series
Sub-Compact Utility tractor

Production
Manufacturer	Kubota
Sub-Compact Utility tractor

Variants
A-175F	glide shift

Kubota A-175 Engine
Kubota 1.0L 3-cyl diesel
Fuel tank	4.5 gal 17.0 L
Engine details ...

Kubota A-175 Transmission
6-speed
Transmission details ...

Kubota A-175 Power
Engine	17.3 hp 12.9 kW

Mechanical
Four-wheel drive
Two-post ROPS.

Tractor hitch
Rear Type	0

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	450@2650
	795@2650
	1187@2650
	-612@2650

Dimensions & Tires
Wheelbase	53.2 inches 135 cm
Weight	1510 lbs 684 kg
Front tire	6-12
Rear tire	8-18
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 61.1 ci / 1.0 L Diesel

Manufacturer	Kubota D1005
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	61.1 ci 1.0 L
Bore/Stroke	2.99x2.90 inches 76 x 74 mm
Power	17.3 hp 12.9 kW
Rated RPM	2650
Starter	electric
Starter volts	12

Transmission

Transmission — 6 forward and 2 reverse

Gears	6 forward and 2 reverse

Dimensions

Kubota A-175 Tires
Standard tires (ag)	Front: 6-12. Rear: 8-18

Dimensions
Wheelbase	53.2 inches 135 cm
Length	99.8 inches 253 cm
Width	41.3 inches 104 cm
Height	71.9 inches 182 cm
Weight	1510 lbs 684 kg
Ground clearance	12.2 inches 30 cm
Front tread	32.3 inches 82 cm
Rear tread	31.9/35.4 inches 81/89 cm

Photos

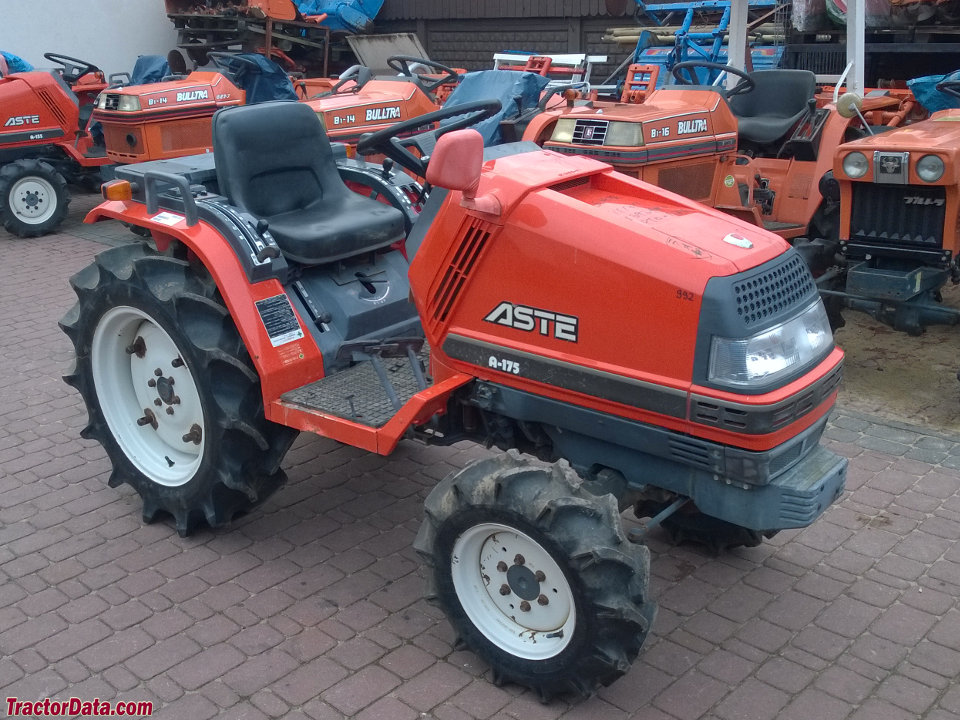

Kubota A-175
