lamborghini 135 formula
 | 1991 - 2000
Formula SeriesRow-Crop tractor | 1991 - 2000 | Formula Series | Row-Crop tractor |
|---|---|---|---|---|
1991 - 2000 | ||||
Formula Series | ||||
Row-Crop tractor | ||||
1991 - 2000 | |
|---|---|
Formula Series | |
Row-Crop tractor |
Transmission options | |
|---|---|
54-speed three-speed power shift | |
72-speed creeper |
Transmission | |
|---|---|
Transmission | Multispeed |
Type | three-speed power shift |
Gears | 54 forward and reverse |
Clutch | electro-hydraulic wet disc |
Six gears (1-6) in three ranges (L/M/H) with three-speed power shift. | |

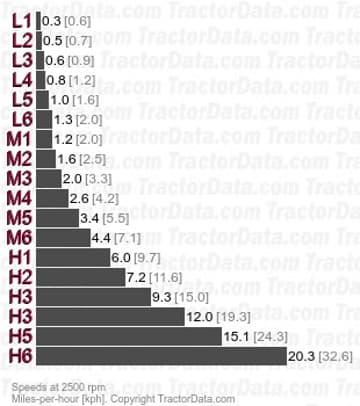

Speeds | |
|---|---|
With 18.4R28 rear tires. Over- and under-drive power shift speeds are about 20% higher and lower, respectively. | |
 |
Transmission | |
|---|---|
Type | creeper |
Gears | 72 forward and reverse |
Creeper option adds a fourth ranges to the standard transmission. | |

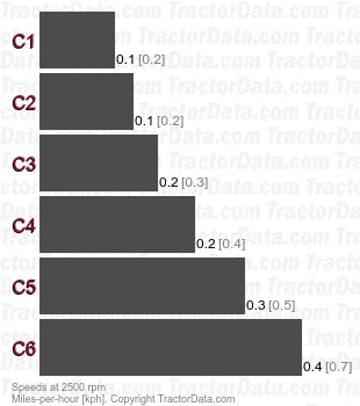

Speeds | |
|---|---|
With 18.4R28 rear tires. Over- and under-drive power shift speeds are about 20% higher and lower, respectively. | |
 |
