Lamborghini 653

The Lamborghini 653 is a tractor produced by Lamborghini. It is equipped with a 190.2 ci 3.1 L engine. The listed engine power is Diesel (net): 62 hp / 46.2 kW; Diesel (gross): 69 hp / 51.5 kW. Transmission: 12 forward and 3 reverse. Operating weight: 5688 to 6217 pounds.

Overview

	1982 - 1985 Utility tractor

Production
Manufacturer	Lamborghini
Utility tractor

Variants
653	utility tractor
C653	crawler
653F	orchard

Lamborghini 653 Engine
SAME 3.1L 3-cyl diesel
Fuel tank	18.5 gal 70.0 L
Engine details ...

Lamborghini 653 Transmission
12-speed synchronized
Transmission details ...

Lamborghini 653 Power
Engine (gross)	69 hp 51.5 kW
Engine (net)	62 hp 46.2 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Dry disc brakes
Cab standard with available heat.

Hydraulics
Pump flow	8.5 gpm 32.2 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	6615 lbs 3000 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	84.25 inches 213 cm
4WD Wheelbase	84.5 inches 214 cm
Weight	5688 to 6217 pounds
Front tire	6.50-16
2WD Rear tire	14.9/13-30
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12
Battery AH	110

References
653 published in 1984, by Lamborghini

Engine

Engine Detail — 190.2 ci / 3.1 L Diesel

Manufacturer	SAME 105.3P
Fuel Type	Diesel
Configuration	3-cylinder, air-cooled
Displacement	190.2 ci 3.1 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power (net)	62 hp 46.2 kW
Power (gross)	69 hp 51.5 kW
Air cleaner	oil bath
Rated RPM	2300
Starter	electric
Starter volts	12

Transmission

Transmission — 12 forward and 3 reverse synchronized

Type	synchronized
Gears	12 forward and 3 reverse
Clutch	279.4mm dry disc
With 14.9/13-30 rear tires.

Dimensions

Lamborghini 653 Tires
2WD Standard tires (ag)	Front: 6.50-16. Rear: 14.9/13-30
4WD Standard tires (ag)	Front: 9.5/9-24. Rear: 14.9/13-30
2WD Optional tires (ag)	Front: 7.50-16. Rear: 16.9/14-30
2WD Optional tires (ag)	Front: 6.50-20. Rear: 12.4/11-36
4WD Optional tires (ag)	Front: 11.2/10-24. Rear: 16.9/14-30

Dimensions
2WD Wheelbase	84.25 inches 213 cm
4WD Wheelbase	84.5 inches 214 cm
Length	132.3 inches 336 cm
Width	68.5 inches 173 cm
2WD Weight	5688 lbs 2580 kg
4WD Weight	6217 lbs 2820 kg
2WD Ground clearance	19.7 inches 50 cm
4WD Ground clearance	14.6 inches 37 cm
2WD Front tread	57.1 to 76.8 inches 145 to 195 cm
4WD Front tread	54.1 to 72.4 inches 137 to 183 cm
Rear tread	53.5 to 73.2 inches 135 to 185 cm

Lamborghini 653 Height
Hood	54 inches 137 cm
Cab	93.7 inches 237 cm
Exhaust	102.4 inches 260 cm

Photos

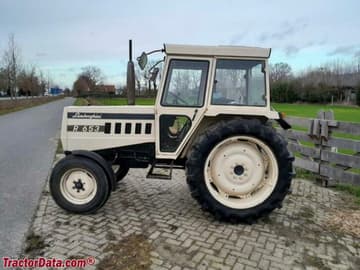

Lamborghini 653
