Lamborghini 654
The Lamborghini 654 is a tractor produced by Lamborghini. It is equipped with a 220.89 ci 3.6 L engine. The listed engine power is Diesel (net): 67 hp / 50.0 kW; Diesel (gross): 72 hp / 53.7 kW. Transmission: 12 forward and 3 reverse. Operating weight: 5887 to 6526 pounds.
Engine Power
Diesel (net): 67 hp / 50.0 kW; Diesel (gross): 72 hp / 53.7 kW
Fuel & Capacities
17.2 gal
65.1 L
Transmission
12 forward and 3 reverse
Operating Weight
5887 to 6526 pounds
Overview
 | 1977 - 1982 |
|---|
Production | |
|---|---|
Manufacturer | Lamborghini |
Variants | |
|---|---|
654DT | 4WD |
Lamborghini 654 Engine | |
|---|---|
Lamborghini 3.6L 4-cyl diesel | |
Fuel tank | 17.2 gal
65.1 L |
Engine details ...  | |
Lamborghini 654 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Lamborghini 654 Power | |
|---|---|
Engine (gross) | 72 hp
53.7 kW |
Engine (net) | 67 hp
50.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Four-post ROPS frame. Cab optional. |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 7.9 gpm
29.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 6615 lbs
3000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
1000 ) ((Optional) | |
Dimensions & Tires | |
|---|---|
Wheelbase | 89.8 inches
228 cm |
Weight | 5887 to 6526 pounds |
Front tire | 7.50-16 |
Rear tire | 14.9-30 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 220.89 ci / 3.6 L Diesel
Manufacturer | Lamborghini 984P |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled |
Displacement | 220.89 ci
3.6 L |
Bore/Stroke | 3.858x4.724 inches
98 x 120 mm |
Power (net) | 67 hp
50.0 kW |
Power (gross) | 72 hp
53.7 kW |
Rated RPM | 2070 |
Starter volts | 12 |
Transmission
Transmission — 12 forward and 3 reverse
Gears | 12 forward and 3 reverse |
 | |
Dimensions
Lamborghini 654 Tires | |
|---|---|
Ag front | 7.50-16 |
9.5-24 (4WD) | |
Ag rear | 14.9-30 |
Dimensions | |
|---|---|
Wheelbase | 89.8 inches
228 cm |
2WD Weight | 5887 lbs
2670 kg |
4WD Weight | 6526 lbs
2960 kg |
Photos

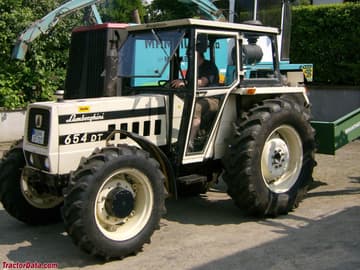

Lamborghini 654
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini 654.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Lamborghini 654 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Lamborghini 654.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
Direct Competitor Comparison
Compare Lamborghini 654 against same-era industry alternatives in the same horsepower class.
Current Model
Lamborghini
Lamborghini 654
Engine Power:Diesel (net): 67 hp / 50.0 kW; Diesel (gross): 72 hp / 53.7 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 460
Engine Power:61
Production Years:1958 - 1963
