Lamborghini Sprint 654-55

The Lamborghini Sprint 654-55 is a tractor produced by Lamborghini. It is equipped with a 183.1 ci 3.0 L engine. The listed engine power is Diesel (listed): 56 hp / 41.8 kW. Transmission: 30 forward and 15 reverse. Operating weight: 5291 to 6283 pounds.

Engine Power

Diesel (listed): 56 hp / 41.8 kW

Fuel & Capacities

23.8 gal 90.1 L

Transmission

30 forward and 15 reverse

Operating Weight

5291 to 6283 pounds

Overview

	2000 - 2004 Sprint SeriesUtility tractor Sprint Series Utility tractor

Production
Manufacturer	Lamborghini
Utility tractor

Lamborghini Sprint 654-55 Engine
SAME 3.0L 3-cyl diesel
Fuel tank	23.8 gal 90.1 L
Engine details ...

Lamborghini Sprint 654-55 Power
Engine	56 hp 41.8 kW

Mechanical
Two- or four-wheel drive
Power steering
Four-post ROPS. Cab optional.

Hydraulics
Pump flow	9.5 gpm 36.0 lpm

Tractor hitch
Rear Type	II
Rear lift	6394 lbs 2900 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E/1000

Dimensions & Tires
2WD Wheelbase	82.9 inches 210 cm
4WD Wheelbase	80.9 inches 205 cm
Weight	5291 to 6283 pounds
Front tire	7.50-16
2WD Rear tire	14.9R28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

Sprint 654/55 - 664/65 - 674/75 - 684/85 published in 1999, by Lamborghini
Sprint 654/55 - 664/65 - 674/75 - 684/85 published in 2002, by Lamborghini

Engine

Engine Detail — 183.1 ci / 3.0 L Diesel

Manufacturer	SAME 1000.3W2
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	183.1 ci 3.0 L
Bore/Stroke	4.134x4.55 inches 105 x 116 mm
Power	56 hp 41.8 kW
Rated RPM	2350
Torque	145.3 lb-ft 197.0 Nm
Torque RPM	1400
Starter	electric
Starter volts	12

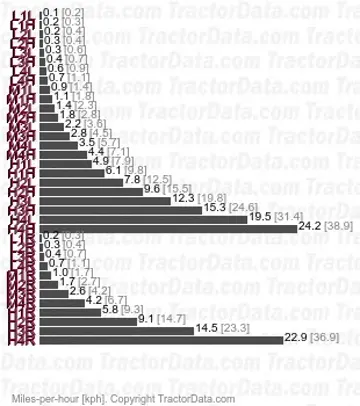

Transmission

Transmission options
16-speed
24-speed
30-speed creeper

Transmission — 16 forward and 8 reverse

Gears

16 forward and 8 reverse

Transmission — 24 forward and 12 reverse

Gears	24 forward and 12 reverse
With 420/70R30 rear tires.

Transmission
Type	creeper
Gears	30 forward and 15 reverse

Dimensions

Lamborghini Sprint 654-55 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 14.9R28
4WD Standard tires (ag)	Front: 11.2R20. Rear: 14.9R28
2WD Optional tires (ag)	Front: 7.50-16. Rear: 420/70R28
2WD Optional tires (ag)	Front: 6.50-20. Rear: 12.4R36
4WD Optional tires (ag)	Front: 320/70R20. Rear: 420/70R28
4WD Optional tires (ag)	Front: 11.2R24. Rear: 12.4R36
4WD Optional tires (ag)	Front: 7.50-16. Rear: 420/70R30

Dimensions
2WD Wheelbase	82.9 inches 210 cm
4WD Wheelbase	80.9 inches 205 cm
Length	131.1 inches 332 cm
Width	70.5 inches 179 cm

Lamborghini Sprint 654-55 Weight
2WD ROPS	5291 lbs 2399 kg
2WD Cab	5732 lbs 2600 kg
4WD ROPS	6173 lbs 2800 kg
4WD Cab	6283 lbs 2849 kg

Lamborghini Sprint 654-55 Height
Steering wheel	66.9 inches 169 cm
Hood	58.7 inches 149 cm
ROPS	93.7 inches 237 cm
Cab	94.5 inches 240 cm

Photos

Lamborghini Sprint 654-55 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Lamborghini Sprint 654-55 based on its 56 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini Sprint 654-55.

Estimated Continuous Field Runtime: 8.2 hrs

Approximately 8.2 hours of continuous field operation at ~75% rated power on a full tank (23.8 gal / 90.1 L).

Estimated 75% Load Fuel Burn~2.9 gal/hr (11 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
