Lamborghini 674-70

The Lamborghini 674-70 is a tractor produced by Lamborghini. It is equipped with a 223.7 ci 3.7 L engine. The listed engine power is Diesel (listed): 65 hp / 48.5 kW. Transmission: 24 forward and 12 reverse. Operating weight: 6218 to 6592 pounds.

Engine Power

Diesel (listed): 65 hp / 48.5 kW

Fuel & Capacities

18.5 gal 70.0 L

Transmission

24 forward and 12 reverse

Operating Weight

6218 to 6592 pounds

Overview

	1983 - 1990 Model year 1983-19861986-1990

Production
Manufacturer	Lamborghini

Lamborghini 674-70 Engine
SAME 3.7L 4-cyl diesel
Fuel tank	18.5 gal 70.0 L
Engine details ...

Lamborghini 674-70 Transmission
24-speed
Transmission details ...

Lamborghini 674-70 Power
Engine	65 hp 48.5 kW

Mechanical
Two- or four-wheel drive
Power steering
Four-post ROPS. Cab optional.

Hydraulics
Pump flow	9.2 gpm 34.8 lpm

Tractor hitch
Rear lift	7563 lbs 3430 kg

Power Take-off (PTO)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	92.9 inches 235 cm
Weight	6218 to 6592 pounds
Front tire	7.50-16
Rear tire	16.9-30
Full dimensions and tires ...

Engine

Engine Detail — 223.7 ci / 3.7 L Diesel

Manufacturer	SAME 916.4W
Fuel Type	Diesel
Configuration	4-cylinder
Displacement	223.7 ci 3.7 L
Bore/Stroke	4.0551x4.3307 inches 103 x 110 mm
Power	65 hp 48.5 kW
Rated RPM	2350
Torque	174.1 lb-ft 236.1 Nm
Torque RPM	1300

Transmission

Transmission — 24 forward and 12 reverse

Gears

24 forward and 12 reverse

Dimensions

Lamborghini 674-70 Tires
Ag front	7.50-16
	12.4-24 (4WD)
Ag rear	16.9-30

Dimensions
Wheelbase	92.9 inches 235 cm
Length	158.3 inches 402 cm
Height	98 inches 248 cm
2WD Weight	6218 lbs 2820 kg
4WD Weight	6592 lbs 2990 kg

Photos

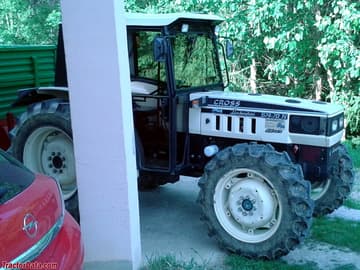

Lamborghini 674-70

Recommended Implements & Sizing Guide

Engineering recommendations for Lamborghini 674-70 based on its 65 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini 674-70.

Estimated Continuous Field Runtime: 5.5 hrs

Approximately 5.5 hours of continuous field operation at ~75% rated power on a full tank (18.5 gal / 70 L).

Estimated 75% Load Fuel Burn~3.4 gal/hr (12.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
