Lamborghini 754

The Lamborghini 754 is a tractor produced by Lamborghini. It is equipped with a 253.5 ci 4.2 L engine. The rated power output is 72 hp 53.7 kW. Transmission: 12 forward and 3 reverse. Drive type: 4x2 2WD. Operating weight: 7298 to 7893 pounds.

Overview

	1975 - 1982	1975 - 1982

Production
Manufacturer	Lamborghini

Variants
754DT	4WD

Lamborghini 754 Transmission
12-speed synchromesh
Transmission details ...

Lamborghini 754 Power
Engine (gross)	78 hp 58.2 kW
Engine (net)	72 hp 53.7 kW
Engine	72 hp 53.7 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD *754DT
Steering	hydrostatic power
Four-post ROPS. Cab optional.

Tractor hitch
Rear Type	II
Control	position and lower-link draft control
Rear lift (at ends)	8380 lbs 3801 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
	1000 OptOptional

Dimensions & Tires
Wheelbase	90.9 inches 230 cm
Weight	7298 to 7893 pounds
Front tire	7.50-16
Rear tire	16.9-30 (2WD)
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	33
Battery volts	12

Engine

Engine options
Lamborghini 3.6L 4-cyl diesel
Lamborghini 4.2L 4-cyl diesel

Engine Detail — 220.9 ci / 3.6 L Diesel

Manufacturer	Lamborghini 984P
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Displacement	220.9 ci 3.6 L
Bore/Stroke	3.86x4.72 inches 98 x 120 mm
Power (net)	72 hp 53.7 kW
Power (gross)	78 hp 58.2 kW
Air cleaner	oil bath
Rated RPM	2335
Starter volts	12

Engine Detail — 253.5 ci / 4.2 L Diesel

Manufacturer	Lamborghini 105.4P
Fuel Type	Diesel
Configuration	4-cylinder, air-cooled
Larger 4.1L engine, introduced in 1982.
Displacement	253.5 ci 4.2 L
Bore/Stroke	4.134x4.72 inches 105 x 120 mm
Power	72 hp 53.7 kW
Rated RPM	2335

Transmission

Transmission — 12 forward and 3 reverse synchromesh

Type	synchromesh
Gears	12 forward and 3 reverse
Clutch	dry disc

Dimensions

Lamborghini 754 Tires
Standard tires (ag)	Front: 7.50-16. Rear: 16.9-30 (2WD)
	Front: 11.2/10-24. Rear: 16.9/14-30 (4WD)
Optional tires (ag)	Front: 7.50-18. Rear: 16.9/14-34 (2WD)
	Front: 6.50-20. Rear: 13.6/12-38 (2WD)
	Front: 7.50-18. Rear: 18.4/15-30 (2WD)
	Front: 12.4/11-24. Rear: 16.9/14-34 (4WD)
	Front: 12.4/11-24. Rear: 13.6/12-38 (4WD)
	Front: 12.4/11-24. Rear: 18.4/15-30 (4WD)

Dimensions
Wheelbase	90.9 inches 230 cm
Length	140.6 inches 357 cm
Height	97.2 inches 246 cm
2WD Weight	7298 lbs 3310 kg
4WD Weight	7893 lbs 3580 kg
2WD Front tread	55.1 to 74.8 inches 139 to 189 cm
4WD Front tread	56.3 to 78.4 inches 143 to 199 cm
Rear tread	63 to 87.4 inches 160 to 221 cm

Photos

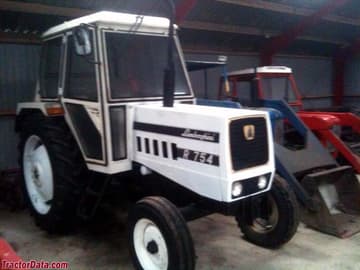

Two-wheel drive Lamborghini 754

Four-wheel drive Lamborghini 754DT, left side.

Lamborghini 754DT, front view.
