Lamborghini Champion 180

The Lamborghini Champion 180 is a tractor produced by Lamborghini. It is equipped with a 366.1 ci 6.0 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: 27 forward and reverse. Operating weight: 15653 lbs 7100 kg.

Engine Power
Diesel (listed): 180 hp / 134.2 kW
Fuel & Capacities
105.7 gal 400.1 L
Transmission
27 forward and reverse
Operating Weight
15653 lbs 7100 kg

Overview

Lamborghini Champion 180 tractor photo
2000 - 2004 Champion SeriesRow-Crop tractor Champion Series Row-Crop tractor
Production
Manufacturer
Lamborghini
Row-Crop tractor
Lamborghini Champion 180 Engine
SDF 6.0L 6-cyl diesel
Fuel tank
105.7 gal 400.1 L
Engine details ...
Lamborghini Champion 180 Power
Engine
180 hp 134.2 kW
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.
Hydraulics
Type
load sensing
Valves
8 OptOptional
Pump flow
29.9 gpm 113.2 lpm
Tractor hitch
Rear lift
22046 lbs 10000 kg
Front lift
8818 lbsOptOptional 3999 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
electro-hydraulic wet disc
Rear PTO Type
540E/1000
540/1000 OptOptional
Front PTO
independent OptOptional
Clutch
electro-hydraulic wet disc
Front PTO Type
1000
540/1000
Dimensions & Tires
Wheelbase
112.2 inches 284 cm
Weight
15653 lbs 7100 kg
Front tire
480/70R34
Rear tire
580/70R42
Full dimensions and tires ...
References
Champion 180 references literature
Champion 160-180-200 published in 1999, by Lamborghini

Engine

Engine Detail — 366.1 ci / 6.0 L Diesel

Manufacturer
SDF 1000.6 WTI 3V
Configuration
turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement
366.1 ci 6.0 L
Bore/Stroke
4.134x4.54 inches 105 x 115 mm
Power
180 hp 134.2 kW
Rated RPM
2350
Torque
575.3 lb-ft 780.1 Nm
Torque RPM
1400

Transmission

Transmission options
18-speed 9-speed power shift
27-speed creeper

Transmission — 18 forward and reverse 9-speed power shift

Type
9-speed power shift
Gears
18 forward and reverse
Clutch
hydraulic wet disc
Nine power shift gears in two ranges with power shuttle.
With 580/70R42 rear tires. Rear speeds are aboutg 9% faster than forward.

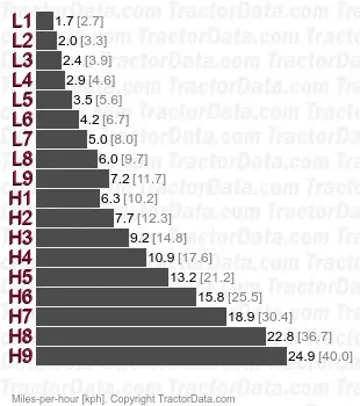

Champion 180 9-speed power shift speeds
Transmission
Type
creeper
Gears
27 forward and reverse
Champion 180 creeper speeds

Dimensions

Lamborghini Champion 180 Tires
Standard tires (ag)
Front: 480/70R34. Rear: 580/70R42
Optional tires (ag)
Front: 540/65R30. Rear: 650/65R38
Front: 540/65R34. Rear: 650/65R42
Front: 480/70R30. Rear: 580/70R38
Front: 600/70R30. Rear: 710/70R38
Dimensions
Wheelbase
112.2 inches 284 cm
Length
191.4 inches 486 cm
Height
116.9 inches 296 cm
Height (hood)
82.1 inches 208 cm
Weight
15653 lbs 7100 kg
Ground clearance
23.4 inches 59 cm
Front tread
73.5 to 73 inches 186 to 185 cm
Rear tread
72.1 to 78.7 inches 183 to 199 cm

Photos

Lamborghini Champion 180 tractor photo

Lamborghini Champion 180 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Lamborghini Champion 180 based on its 180 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini Champion 180.

Estimated Continuous Field Runtime: 11.3 hrs

Approximately 11.3 hours of continuous field operation at ~75% rated power on a full tank (105.7 gal / 400.1 L).

Estimated 75% Load Fuel Burn~9.4 gal/hr (35.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Lamborghini Champion 180 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Lamborghini Champion 180.

Converted Equivalents:

Horsepower (HP)180 hp
Kilowatts (kW)134.2 kW
Metric Horsepower (PS / CV)182.5 PS
