Lamborghini 1506

The Lamborghini 1506 is a tractor produced by Lamborghini. It is equipped with a 417.5 ci 6.8 L engine. The listed engine power is Diesel (listed): 145 hp / 108.1 kW. Transmission: 16 forward and 12 reverse. Operating weight: 12345 to 12786 pounds.

Engine Power

Diesel (listed): 145 hp / 108.1 kW

Fuel & Capacities

60.8 gal 230.1 L

Transmission

16 forward and 12 reverse

Operating Weight

12345 to 12786 pounds

Overview

	1984 - 1994 Row-Crop tractor

Production
Manufacturer	Lamborghini (a part of SAME)
Row-Crop tractor

Lamborghini 1506 Engine
Lamborghini 6.8L 6-cyl diesel
Fuel tank	60.8 gal 230.1 L
Engine details ...

Lamborghini 1506 Power
Engine	145 hp 108.1 kW

Mechanical
Four-wheel drive
Final drives	planetary
Differential lock	mechanical front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
Cab available with air-conditioning.

Hydraulics
Pump flow	16.7 gpm 63.2 lpm

Tractor hitch
Rear Type	III/II
Control	position and draft control
Rear lift	11904 lbs 5399 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	112.4 inches 285 cm
Weight	12345 to 12786 pounds
Front tire	16.9/14-30
Rear tire	20.8-38
Full dimensions and tires ...

Electrical
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	55
Battery volts	12
Battery AH	143

References

1506 Turbo published in 1986, by Lamborghini

Engine

Engine Detail — 417.5 ci / 6.8 L Diesel

Manufacturer	Lamborghini 1106/14T
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	417.5 ci 6.8 L
Bore/Stroke	4.33x4.72 inches 110 x 120 mm
Power	145 hp 108.1 kW
Fuel system	direct injection
Air cleaner	dry
Rated RPM	2180
Torque	396.1 lb-ft 537.1 Nm
Torque RPM	1260
Starter volts	12

Transmission

Transmission options
24-speed

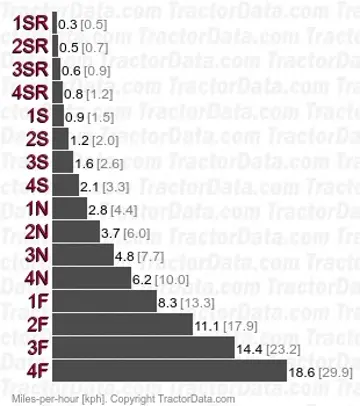

16-speed creeper

Transmission — 24 forward and 12 reverse

Gears	24 forward and 12 reverse
Clutch	hydraulic cerametallic disc
Four gears (1-4) in three ranges (S/N/F) with two-speed high-low shift.
Transmission
Type	creeper
Gears	16 forward and 12 reverse

Dimensions

Lamborghini 1506 Tires
Ag front	16.9/14-30
Ag rear	20.8-38
Ag front	14.9/13-30
Ag rear	18.4/15-38

Dimensions
Wheelbase	112.4 inches 285 cm
Length	177.6 inches 451 cm
Width	87.6 inches*Minimum width 222 cm
ROPS Weight	12345 lbs 5599 kg
Cab Weight	12786 lbs 5799 kg
Ground clearance	20.9 inches 53 cm
Front tread	70.9 to 78.7 inches 180 to 199 cm
Rear tread	66.9 to 86.6 inches 169 to 219 cm

Lamborghini 1506 Height
Hood	73.4 inches 186 cm
ROPS	107.9 inches 274 cm
Cab	110.6 inches 280 cm

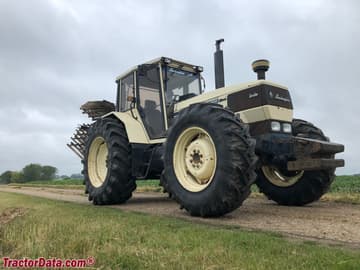

Photos

Lamborghini 1506

Recommended Implements & Sizing Guide

Engineering recommendations for Lamborghini 1506 based on its 145 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini 1506.

Estimated Continuous Field Runtime: 8.1 hrs

Approximately 8.1 hours of continuous field operation at ~75% rated power on a full tank (60.8 gal / 230.2 L).

Estimated 75% Load Fuel Burn~7.5 gal/hr (28.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
