Landini 7500

The Landini 7500 is a tractor produced by Landini. It is equipped with a 235.8 ci 3.9 L engine. The rated power output is 70 hp 52.2 kW. Transmission: 12 forward and 4 reverse. Operating weight: 5490 to 5998 pounds.

Overview

	1973 - 1983 Utility tractor
1973 - 1983
Utility tractor

Production
Manufacturer	Landini
Utility tractor

Landini 7500 Engine
Perkins 3.9L 4-cyl diesel
Fuel tank	16 gal 60.6 L
Engine details ...

Landini 7500 Transmission
12-speed
Transmission details ...

Landini 7500 Power
Engine	70 hp 52.2 kW

Mechanical
Two- or four-wheel drive
Steering	mechanical
	hydrostatic power OptOptional
Dry disc brakes
Four-post ROPS. Cab optional.

Hydraulics
Pump flow	7.5 gpm 28.4 lpm

Tractor hitch
Rear Type	II
Rear lift	5733 lbs 2600 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/ground (1.375)
	1000 OptOptional

Dimensions & Tires
2WD Wheelbase	88.2 inches 224 cm
Weight	5490 to 5998 pounds
Front tire	7.50-16
Rear tire	12.4-36
Full dimensions and tires ...

References
7500 published in 1983, by Landini

Engine

Engine Detail — 235.8 ci / 3.9 L Diesel

Manufacturer	Perkins A4.236
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	235.8 ci 3.9 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	70 hp 52.2 kW
Rated RPM	2200
Torque	191.8 lb-ft 260.1 Nm
Torque RPM	1200
Starter volts	12

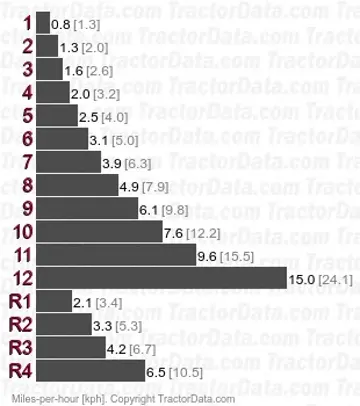

Transmission

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	279.4mm dry dsc

Dimensions

Landini 7500 Tires
Ag front	7.50-16
Ag rear	12.4-36
Ag front	11.2-24
Ag rear	16.9-30

Dimensions
2WD Wheelbase	88.2 inches 224 cm
Length	142.9 inches 362 cm
2WD Height (hood)	56.3 inches 143 cm
Height (ROPS)	91.7 inches 232 cm
2WD Weight	5490 lbs 2490 kg
4WD Weight	5998 lbs 2720 kg
Front tread	55.1 to 74.8 inches 139 to 189 cm
Rear tread	51.2 to 78.7 inches 130 to 199 cm

Photos

Landini 7500 tractor photo
