Lawn Chief 600
The Lawn Chief 600 is a tractor produced by Lawn Chief Lawn Tractors. The rated power output is 14 hp 10.4 kW. Transmission: 5 forward and 1 reverse.
Engine Power
14 hp
10.4 kW
Fuel & Capacities
Gasoline
Transmission
5 forward and 1 reverse
Lawn Chief Lawn Tractors Lawn Chief 600 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1988 - 1990
Garden tractor |
|---|---|
1988 - 1990 | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Lawn Chief |
Garden tractor | |
Built in Harvard, Illinois, USA | |
Original price was $1,899 in 1989 | |
Lawn Chief 600 Engine | |
|---|---|
14HP 2-cyl gasoline | |
Engine details ...  |
Lawn Chief 600 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Dimensions & Tires | |
|---|---|
Front tire | 16x6.50 |
Rear tire | 20x10.00 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |

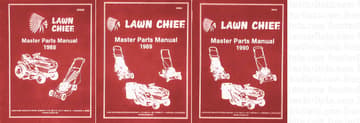

Master Parts Manual published in 1988 | |
Master Parts Manual published in 1989 | |
Master Parts Manual published in 1990 |
Engine
Engine Detail — Gasoline
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft horizontally-opposed |
Power (gross) | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Dimensions
Lawn Chief 600 Tires | |
|---|---|
Lawn/turf front | 16x6.50 |
Lawn/turf rear | 20x10.00 |
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
45" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
45" Mower deck | |
|---|---|
Type | mid-mount Lawn Chief |
3-blade with manual lift | |
Cutting width | 45 inches
114 cm |
