Lenar JL254
The Lenar JL254 is a tractor produced by Lenar. It is equipped with a 98.7 ci 1.6 L engine. The listed engine power is Diesel (listed): 25 hp / 18.6 kW. Transmission: 8 forward and reverse. Operating weight: 3395 lbs 1539 kg.
Engine Power
Diesel (listed): 25 hp / 18.6 kW
Fuel & Capacities
7.9 gal
29.9 L
Transmission
8 forward and reverse
Operating Weight
3395 lbs
1539 kg
Overview
 | 2003 - 2005
Compact Utility tractorJiangling built
Compact Utility tractor
Jiangling built |
|---|
Production | |
|---|---|
Distributor | Lenar |
Manufacturer | Jiangling |
Compact Utility tractor | |
Built in Nanchang, Jiangxi, China | |
Lenar JL254 Engine | |
|---|---|
Jiangxi 1.6L 3-cyl diesel | |
Fuel tank | 7.9 gal
29.9 L |
Engine details ...  | |
Lenar JL254 Transmission | |
|---|---|
8-speed shuttle | |
Transmission details ...  |
Lenar JL254 Power | |
|---|---|
Engine | 25 hp
18.6 kW |
PTO (claimed) | 22 hp
16.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 1117 lbs
506 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live (dual stage) |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 65.4 inches
166 cm |
Weight | 3395 lbs
1539 kg |
Front tire | 6.00x16 |
Rear tire | 11.2x24 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 98.7 ci / 1.6 L Diesel
Manufacturer | Jiangxi NJ358B |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 98.7 ci
1.6 L |
Bore/Stroke | 3.346x3.74 inches
85 x 95 mm |
Power | 25 hp
18.6 kW |
Compression | 22:1 |
Rated RPM | 2500 |

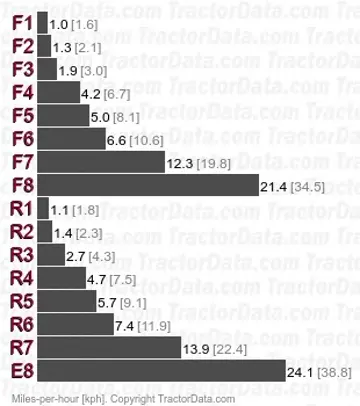

Transmission
Transmission — 8 forward and reverse shuttle
Type | shuttle |
Gears | 8 forward and reverse |
 | |
Dimensions
Lenar JL254 Tires | |
|---|---|
Ag front | 6.00x16 |
Ag rear | 11.2x24 |
Dimensions | |
|---|---|
Wheelbase | 65.4 inches
166 cm |
Length | 119.3 inches
303 cm |
Width | 53 inches
134 cm |
Operating weight | 3395 lbs
1539 kg |
Ground clearance | 13.4 inches
34 cm |
Front tread | 43.3 inches
109 cm |
Rear tread | 41.3/45.3/49.2/53.2 inches
104/115/124/135 cm |
Photos
Lenar JL254 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Lenar JL254 based on its 25 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Lenar JL254.
Estimated Continuous Field Runtime: 6.1 hrs
Approximately 6.1 hours of continuous field operation at ~75% rated power on a full tank (7.9 gal / 29.9 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Lenar JL254 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Lenar JL254.
Converted Equivalents:
Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS
Direct Competitor Comparison
Compare Lenar JL254 against same-era industry alternatives in the same horsepower class.
Current Model
Lenar
Lenar JL254
Engine Power:Diesel (listed): 25 hp / 18.6 kW
★ Baseline Reference
