Leyland 154

The Leyland 154 is a tractor produced by Leyland. It is equipped with a 99 ci 1.6 L engine. The rated power output is 28 hp 20.9 kW. Transmission: 9 forward and 3 reverse. Operating weight: 2325 lbs 1054 kg.

Overview

	1970 - 1984 Utility tractor
1970 - 1984
Utility tractor

Production
Manufacturer	Leyland
Utility tractor
Original price was $8,300 in 1984

Leyland 154 Transmission
9-speed constant mesh
Transmission details ...

Leyland 154 Power
Engine	28 hp 20.9 kW
PTO (claimed)	24 hp 17.9 kW

Mechanical
Two-wheel drive
Final drives	spur gear
Differential lock	mechanical rear
Manual steering
Disc brakes
Open operator station.

Hydraulics
Type	open center
Pressure	2000 psi 137.9 bar
Pump flow	3.8 gpm 14.4 lpm

Tractor hitch
Rear Type	I
Rear lift	1000 lbs 453 kg

Power Take-off (PTO)
Rear PTO Type	540/1000
Engine RPM	540@2260
	1000@2440

Dimensions & Tires
Wheelbase	67.7 inches 171 cm
Weight	2325 lbs 1054 kg
Front tire	5.00-15
Rear tire	11.2/10-24
Full dimensions and tires ...

Electrical
Charging amps	34

References
154 published in 1971, by Leyland

Engine

Engine options
BMC 1.5L 4-cyl diesel
BMC 1.6L 4-cyl gasoline

Engine Detail — 91 ci / 1.5 L Diesel

Manufacturer	BMC 15T
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	91 ci 1.5 L
Bore/Stroke	2.875x3.5 inches 73 x 89 mm
Compression	23:1
Rated RPM	2500

Engine Detail — 99 ci / 1.6 L Gasoline

Manufacturer	BMC 16T
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	99 ci 1.6 L
Bore/Stroke	3.00x3.50 inches 76 x 89 mm
Power	28 hp 20.9 kW
Fuel system	Zenith carburetor
Air cleaner	oil bath
Compression	7.2:1
Rated RPM	2500
Torque	71 lb-ft 96.3 Nm
Torque RPM	1250
Firing order	1-3-4-2
Starter volts	12
Oil capacity	4.8 qts 4.5 L

Transmission

Transmission — 9 forward and 3 reverse constant mesh

Type	constant mesh
Gears	9 forward and 3 reverse
Clutch	241mm dry disc
Three gears, plus reverse, in three ranges.

Dimensions

Leyland 154 Tires
Ag front	5.00-15
Ag rear	11.2/10-24
Ag front	5.50-16
Ag rear	12.4/11-24

Dimensions
Wheelbase	67.7 inches 171 cm
Length	102.4 inches 260 cm
Width	59.4 inches 150 cm
Weight	2325 lbs 1054 kg
Clearance (front axle)	21 inches 53 cm
Clearance (rear axle)	19 inches 48 cm
Front tread	48 to 68 inches 121 to 172 cm
Rear tread	44 to 72 inches 111 to 182 cm

Leyland 154 Height
Steering wheel	50.6 inches 128 cm
Hood	45.1 inches 114 cm
Exhaust	74.5 inches 189 cm

Photos

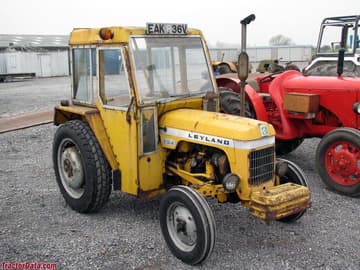

Leyland 154 in yellow with cabin.

Leyland 154 in blue paint.
