Leyland 235
The Leyland 235 is a tractor produced by Leyland. It is equipped with a 109 ci 1.8 L engine. The listed engine power is Diesel (listed): 28 hp / 20.9 kW. Transmission: 9 forward and 3 reverse. Operating weight: 2710 lbs 1229 kg.
Engine Power
Diesel (listed): 28 hp / 20.9 kW
Fuel & Capacities
8.4 gal
31.8 L
Transmission
9 forward and 3 reverse
Operating Weight
2710 lbs
1229 kg
Overview
 | 1982 - 1984
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Leyland |
Utility tractor | |
Original price was $8,300 in 1984 | |
Leyland 235 Engine | |
|---|---|
Leyland 1.8L 4-cyl diesel | |
Fuel tank | 8.4 gal
31.8 L |
Engine details ...  | |
Leyland 235 Transmission | |
|---|---|
9-speed gear | |
Transmission details ...  |
Leyland 235 Power | |
|---|---|
Engine | 28 hp
20.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 1250 lbs
567 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | continuous |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 67 inches
170 cm |
Weight | 2710 lbs
1229 kg |
Front tire | 5.50-16 |
Rear tire | 14-24 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 109 ci / 1.8 L Diesel
Manufacturer | Leyland 18T |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 109 ci
1.8 L |
Bore/Stroke | 3.16x3.50 inches
80 x 89 mm |
Power | 28 hp
20.9 kW |
Rated RPM | 2500 |
Torque | 69 lb-ft
93.6 Nm |
Torque RPM | 1600 |
Transmission
Transmission — 9 forward and 3 reverse gear
Type | gear |
Gears | 9 forward and 3 reverse |
Clutch | dry disc |
Dimensions
Leyland 235 Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 14-24 |
Dimensions | |
|---|---|
Wheelbase | 67 inches
170 cm |
Weight | 2710 lbs
1229 kg |
Photos

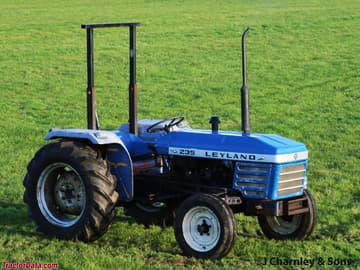

Leyland 235
Recommended Implements & Sizing Guide
Engineering recommendations for Leyland 235 based on its 28 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Leyland 235.
Estimated Continuous Field Runtime: 5.8 hrs
Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (8.4 gal / 31.8 L).
Estimated 75% Load Fuel Burn~1.5 gal/hr (5.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Leyland 235 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Leyland 235.
Converted Equivalents:
Horsepower (HP)28 hp
Kilowatts (kW)20.9 kW
Metric Horsepower (PS / CV)28.4 PS
Direct Competitor Comparison
Compare Leyland 235 against same-era industry alternatives in the same horsepower class.
Current Model
Leyland
Leyland 235
Engine Power:Diesel (listed): 28 hp / 20.9 kW
★ Baseline Reference
