Leyland 455
The Leyland 455 is a tractor produced by Leyland. It is equipped with a 222 ci 3.6 L engine. Transmission: 10 forward and 2 reverse.
Fuel & Capacities
Diesel
Transmission
10 forward and 2 reverse
Leyland 455 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

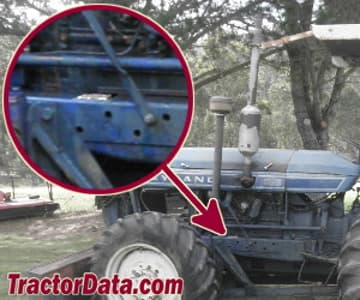

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1978 - ????
Utility tractor |
|---|---|
1978 - ???? | |
Utility tractor | |
1978 - ???? | |
|---|---|
Utility tractor |
Production | |
|---|---|
Manufacturer | Leyland |
Utility tractor | |
The Leyland 455 was a 255 with a four-wheel drive system installed by Four Wheel Traction Ltd. | |
Leyland 455 Engine | |
|---|---|
Leyland 3.6L 4-cyl diesel | |
Engine details ...  |
Leyland 455 Transmission | |
|---|---|
10-speed gear | |
Transmission details ...  |
Leyland 455 Power |
|---|
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power assist |
Mechanical dry disc brakes | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 7.9 gpm
29.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
| 1978 - ????
Utility tractor |
|---|---|
1978 - ???? | |
Utility tractor | |
1978 - ???? | |
|---|---|
Utility tractor |
Engine Detail — 222 ci / 3.6 L Diesel
Manufacturer | Leyland |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 222 ci
3.6 L |
Bore/Stroke | 3.858x4.921 inches
98 x 125 mm |
Air cleaner | dry |
Compression | 17.8:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Leyland 455 Engine | |
|---|---|
 | |
Image courtesy of Van Osgood |
Transmission
| 1978 - ????
Utility tractor |
|---|---|
1978 - ???? | |
Utility tractor | |
1978 - ???? | |
|---|---|
Utility tractor |
Transmission — 10 forward and 2 reverse gear
Type | gear |
Gears | 10 forward and 2 reverse |
Clutch | mechanical dry disc |
Five gears (1-5) plus reverse (R) in two ranges (low/high). | |
Dimensions
| 1978 - ????
Utility tractor |
|---|---|
1978 - ???? | |
Utility tractor | |
1978 - ???? | |
|---|---|
Utility tractor |
Leyland 455 Tires |
|---|
Dimensions |
|---|
Photos

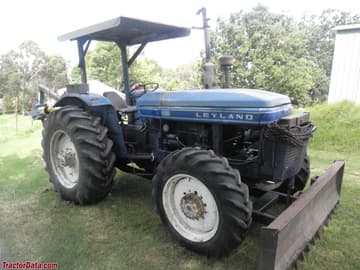

Leyland 455
Leyland 455
Leyland 455
Leyland 455
