Leyland 462

The Leyland 462 is a tractor produced by Leyland. It is equipped with a 230 ci 3.8 L engine. Transmission: 9 forward and 3 reverse. Operating weight: 7400 lbs 3356 kg.

Fuel & Capacities
Diesel
Transmission
9 forward and 3 reverse
Operating Weight
7400 lbs 3356 kg

Leyland 462 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

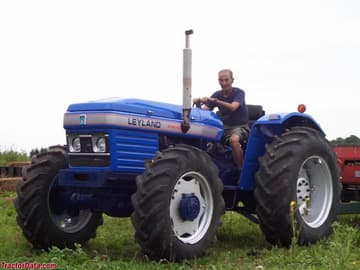

Leyland 462 tractor photo
1979 - 1984
1979 - 1984
Production
Manufacturer
Leyland
Original price
$16,000 (1984)
Variants
262
2WD
462
4WD
Leyland 462 Engine
Leyland 3.8L 4-cyl diesel
Engine details ...
Leyland 462 Transmission
9-speed
Transmission details ...
Leyland 462 Power
PTO (claimed)
53 hp 39.5 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Disc brakes
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
Dimensions & Tires
Weight
7400 lbs 3356 kg
Front tire
11.00-24
Rear tire
11.00-36
Full dimensions and tires ...

Engine

Engine Detail — 230 ci / 3.8 L Diesel

Manufacturer
Leyland 4/98DT
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
230 ci 3.8 L
Bore/Stroke
3.858x4.921 inches 98 x 125 mm
Compression
16.8:1
Rated RPM
2200
Firing order
1-3-4-2

Transmission

Transmission — 9 forward and 3 reverse

Gears
9 forward and 3 reverse

Dimensions

Leyland 462 Tires
Ag front
11.00-24
Ag rear
11.00-36
Dimensions
Weight
7400 lbs 3356 kg

Photos

John H

John H
