Long 360
The Long 360 is a tractor produced by Long. It is equipped with a 142.8 ci 2.3 L engine. The rated power output is 38 hp 28.3 kW. Transmission: 8 forward and 2 reverse. Drive type: 4x2 2WD. Operating weight: 3750 to 4480 pounds.
Engine Power
38 hp
28.3 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
14.25 gal
53.9 L
Transmission
8 forward and 2 reverse
Operating Weight
3750 to 4480 pounds
Long 360 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

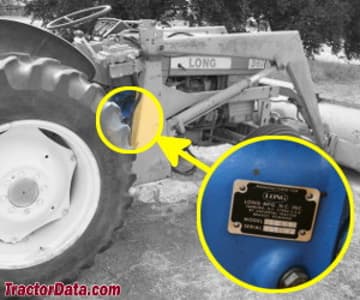

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1977 - 1991
Utility tractorUTB/Universal built |
|---|---|
1977 - 1991 | |
Utility tractor | |
UTB/Universal built | |
1977 - 1991 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Production | |
|---|---|
Distributor | Long |
Manufacturer | UTB/Universal |
Utility tractor | |
Built in Brasov, Romania | |
The Long 360 carried model number 1563. | |
Long 360 Engine | |
|---|---|
Uzina 2.3L 3-cyl diesel | |
Engine details ...  |
Long 360 Power | |
|---|---|
Engine | 38 hp
28.3 kW |
Drawbar (claimed) | 30 hp
22.4 kW |
PTO (claimed) | 35 hp
26.1 kW |
Drawbar (tested) | 31.06 hp
23.2 kW |
PTO (tested) | 36.16 hp
27.0 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 MFWD 4WD (optional) | |
Steering | manual |
power optional | |
Independent contracting band brakes | |
Open operator station. | |
Capacity | |
|---|---|
Fuel | 14.25 gal
53.9 L |
Hydraulic system | 4.5 gal
17.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 4.5 gal
17.0 L |
Valves | 1 |
Total flow | 5.75 gpm
21.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift | 2650 lbs
1202 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live *Two-stage clutch |
Rear PTO Type | 540 |
Engine RPM | 540@1970 |
Dimensions & Tires | |
|---|---|
Wheelbase | 75 inches
190 cm |
Weight | 3750 to 4480 pounds |
Front tire | 7.50-16 |
Rear tire | 14.9-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 100 |
135 OptOptional | |
Battery volts | 12 |
References | |
|---|---|
 | |
360 Diesel Tractor published in 1976, by Long | |
Loaders published in 1993, by Long |
Engine
| 1977 - 1991
Utility tractorUTB/Universal built |
|---|---|
1977 - 1991 | |
Utility tractor | |
UTB/Universal built | |
1977 - 1991 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Engine Detail — 142.8 ci / 2.3 L Diesel
Manufacturer | Uzina D-115 |
Fuel Type | Diesel |
Configuration | 3-cylinder 6-valve, liquid-cooled |
Displacement | 142.8 ci
2.3 L |
Bore/Stroke | 3.74x4.33 inches
95 x 110 mm |
Power | 38 hp
28.3 kW |
Compression | 17:1 |
Rated RPM | 2255 |
Idle RPM | 600-2355 |
Torque | 96.16 lb-ft
130.4 Nm |
Torque RPM | 1590 |
Firing order | 1-2-3 |
Starter volts | 12 |
Oil capacity | 8.25 qts
7.8 L |
Coolant capacity | 13.5 qts
12.8 L |
Intake valve clearance | 0.0984 inches (cold)
2.499 mm |
Exhaust valve clearance | 0.0984 inches (cold)
2.499 mm |
Transmission
| 1977 - 1991
Utility tractorUTB/Universal built |
|---|---|
1977 - 1991 | |
Utility tractor | |
UTB/Universal built | |
1977 - 1991 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Transmission options | |
|---|---|
6-speed partially synchronized | |
8-speed |
Transmission — 6 forward and 2 reverse partially synchronized
Type | partially synchronized |
Gears | 6 forward and 2 reverse |
Oil capacity | 18 qts
17.0 L |
Shifts between gears 2-3 and 5-6 are synchronized. | |
With 12.4x28 rear tires. | |
 | |
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Dimensions
| 1977 - 1991
Utility tractorUTB/Universal built |
|---|---|
1977 - 1991 | |
Utility tractor | |
UTB/Universal built | |
1977 - 1991 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Long 360 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 14.9-28 |
Dimensions | |
|---|---|
Wheelbase | 75 inches
190 cm |
Length | 113 inches
287 cm |
Height (steering wheel) | 55.25 inches
140 cm |
Height (hood) | 53.75 inches
136 cm |
Ground clearance | 18 inches
45 cm |
Long 360 Weight | |
|---|---|
Shipping | 3750 lbs
1701 kg |
Operating | 4480 lbs
2032 kg |
Ballasted | 6410 lbs
2907 kg |
Tests
| 1977 - 1991
Utility tractorUTB/Universal built |
|---|---|
1977 - 1991 | |
Utility tractor | |
UTB/Universal built | |
1977 - 1991 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Nebraska Tractor Test 1298 | |
|---|---|
Diesel 6-speed 2WD
March 13 - 20, 1979
Link: Nebraska Tractor Test 1298 file | |
PTO performance | |
Power at rated engine speed | 36.16 hp
27.0 kW |
Fuel use | 2.5 gal/hour
9.5 l/hour |
Power at rated PTO speed | 31.06 hp
23.2 kW |
Fuel use | 2.2 gal/hour
8.3 l/hour |
Drawbar performance | |
Max power | 31.06 hp
23.2 kW |
Fuel use | 2.5 gal/hour
9.5 l/hour |
Gear 4 used for power test. | |
Max pull | 4,808 lbs
2180 kg |
Gear 1 used for pull test. | |
Attachments
| 1977 - 1991
Utility tractorUTB/Universal built |
|---|---|
1977 - 1991 | |
Utility tractor | |
UTB/Universal built | |
1977 - 1991 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Photos

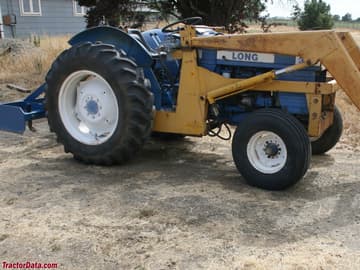

Long 360 with gannon and loader
Long model 360 tractor
Rear view of the Long 360.
Long 360 engine.
