long 510
 | 1979 - 1990
Utility tractorUTB/Universal built | 1979 - 1990 | Utility tractor | UTB/Universal built |
|---|---|---|---|---|
1979 - 1990 | ||||
Utility tractor | ||||
UTB/Universal built | ||||
1979 - 1990 | |
|---|---|
Utility tractor | |
UTB/Universal built |
Tractor Tests | |
|---|---|
NTTL 1415: diesel 8-speed 2WD | |
NTTL 1416: diesel 8-speed 4WD |

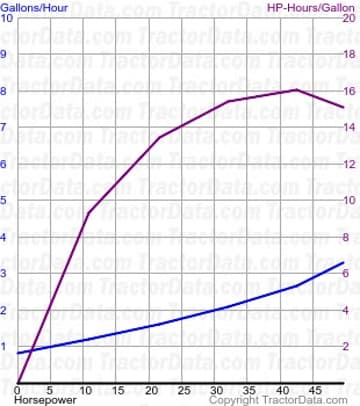

Nebraska Tractor Test 1415 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1415 | |
|---|---|
Diesel 8-speed 2WD
October 29 - November 14, 1981
Link: Nebraska Tractor Test 1415 file | |
PTO performance | |
Power at rated engine speed | 49.15 hp
36.7 kW |
Fuel use | 3.2 gal/hour
12.1 l/hour |
Power at rated PTO speed | 46.91 hp
35.0 kW |
Fuel use | 3.0 gal/hour
11.4 l/hour |
Drawbar performance | |
Max power | 41.75 hp
31.1 kW |
Fuel use | 3.2 gal/hour
12.1 l/hour |
Gear 5 used for power test. | |
Max pull | 6040 lbs
2739 kg |
Gear 2 used for pull test. | |

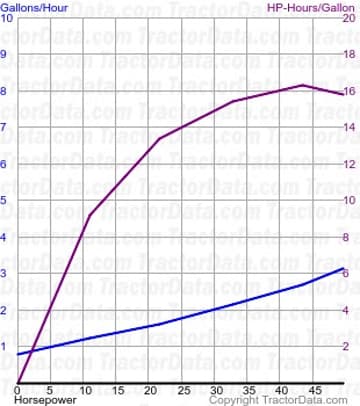

Nebraska Tractor Test 1416 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1416 | |
|---|---|
Diesel 8-speed 4WD
October 29 - November 14, 1981
Link: Nebraska Tractor Test 1416 file | |
PTO performance | |
Power at rated engine speed | 49.35 hp
36.8 kW |
Fuel use | 3.1 gal/hour
11.7 l/hour |
Power at rated PTO speed | 46.41 hp
34.6 kW |
Fuel use | 2.8 gal/hour
10.6 l/hour |
Drawbar performance | |
Max power | 40.01 hp
29.8 kW |
Fuel use | 3.1 gal/hour
11.7 l/hour |
Gear 5 used for power test. | |
Max pull | 5635 lbs
2556 kg |
Gear 2 used for pull test. | |
