long r9500

Long R9500 tractor photo
1972 - 1975 Row-Crop tractorLandini built
1972 - 1975
Row-Crop tractor
Landini built
1972 - 1975
Row-Crop tractor
Landini built
1972 - 1975
Row-Crop tractor
Landini built
Nebraska Tractor Test 1107

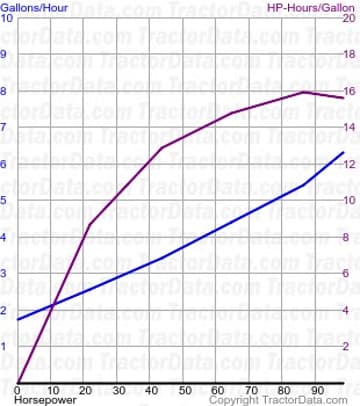

R9500 fuel use from test 1107
R9500 fuel use from test 1107
R9500 fuel use from test 1107
R9500 fuel use from test 1107
Nebraska Tractor Test 1107
Diesel 12-speed 2WD September 13 - 19, 1972 Link: Nebraska Tractor Test 1107 file
PTO performance
Power at rated engine speed
97.72 hp 72.9 kW
Fuel use
6.3 gal/hour 23.8 l/hour
Power at rated PTO speed
88.13 hp 65.7 kW
Fuel use
5.4 gal/hour 20.4 l/hour
Drawbar performance
Max power
79.65 hp 59.4 kW
Fuel use
6.1 gal/hour 23.1 l/hour
Gear 8 used for power test.
Max pull
10,216 lbs 4633 kg
Gear 4 used for pull test.
