Mahindra 1526
The Mahindra 1526 is a tractor produced by Mahindra. It is equipped with a 80.4 ci 1.3 L engine. The listed engine power is Diesel (listed): 25.6 hp / 19.1 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 840 lbs 381 kg.
Engine Power
Diesel (listed): 25.6 hp / 19.1 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
840 lbs
381 kg
Overview
 | 2016 - 2018
1500 SeriesCompact Utility tractorMitsubishi built
1500 Series
Compact Utility tractor
Mitsubishi built |
|---|
Production | |
|---|---|
Distributor | Mahindra |
Manufacturer | Mitsubishi |
Compact Utility tractor | |
Original price | $16,340 (2016 shuttle ) |
$17,480 (2016 hydrostatic ) | |
Mahindra 1526 Engine | |
|---|---|
Mitsubishi 1.3L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Mahindra 1526 Power | |
|---|---|
Engine | 25.6 hp
19.1 kW |
Shuttle PTO (claimed) | 19 hp
14.2 kW |
Hydro PTO (claimed) | 18.5 hp
13.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post foldable ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Rear valves | 1 OptOptional |
Pump flow | 7.5 gpm
28.4 lpm |
Steering flow | 3.3 gpm
12.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift | 2646 lbs
1200 kg |
Rear Arms | telescopic stabilizers |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Weight | 2437 to 2459 pounds |
Front tire | 7x16 |
Rear tire | 11.2x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 50 |
Charging volts | 12 |
Battery CCA | 540 |
Battery volts | 12 |
Battery AH | 46 |
Engine
Engine Detail — 80.4 ci / 1.3 L Diesel
Manufacturer | Mitsubishi S3L2 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 80.4 ci
1.3 L |
Bore/Stroke | 3.07x3.62 inches
78 x 92 mm |
Emissions | Tier IV |
Power | 25.6 hp
19.1 kW |
Fuel system | direct injection |
Compression | 22:1 |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
8-speed shuttle | |
hydrostatic |
Transmission — 8 forward and reverse shuttle
Type | shuttle |
Gears | 8 forward and reverse |
Clutch | dry disc |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Dimensions
Mahindra 1526 Tires | |
|---|---|
Standard tires (ag) | Front: 7x16. Rear: 11.2x24 |
Lawn/turf front | 25x8.5-14 |
Lawn/turf rear | 13.6x16 |
Industrial front | 27x8.5-15 |
Industrial rear | 15x19.5 |
Dimensions | |
|---|---|
Length | 121.3 inches
308 cm |
Width | 63 inches
160 cm |
Height (ROPS) | 81.5 inches
207 cm |
Shuttle Weight | 2437 lbs
1105 kg |
Hydro Weight | 2459 lbs
1115 kg |
Attachments
Attachment overview | |
|---|---|
Front-end loader | |
Backhoe |
Mahindra 1526B Backhoe | |
|---|---|
Backhoe type | Mahindra 1526B Backhoe |
Weight | 840 lbs
381 kg |
Transport height | 73 inches
185 cm |
Digging depth | 86 inches
218 cm |
2-Foot flat digging depth | 84 inches
213 cm |
Reach from pivot | 114 inches
289 cm |
Loading height | 68 inches
172 cm |
Bucket Rotation | 185° |
Swing Arc | 145° |
Bucket force | 2440 lbs
1106 kg |
Dipperstick force | 1510 lbs
684 kg |
Photos

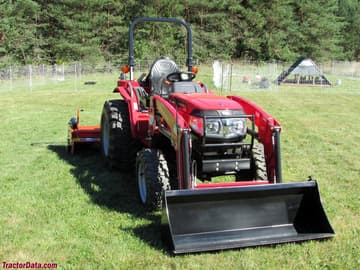

Mahindra 1526 with front-end loader, front-right view.
Mahindra 1526, left side.
Recommended Implements & Sizing Guide
Engineering recommendations for Mahindra 1526 based on its 25.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mahindra 1526.
Estimated Continuous Field Runtime: 5.3 hrs
Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mahindra 1526 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mahindra 1526.
Converted Equivalents:
Horsepower (HP)25.6 hp
Kilowatts (kW)19.1 kW
Metric Horsepower (PS / CV)26 PS
Direct Competitor Comparison
Compare Mahindra 1526 against same-era industry alternatives in the same horsepower class.
Current Model
Mahindra
Mahindra 1526
Engine Power:Diesel (listed): 25.6 hp / 19.1 kW
★ Baseline Reference
