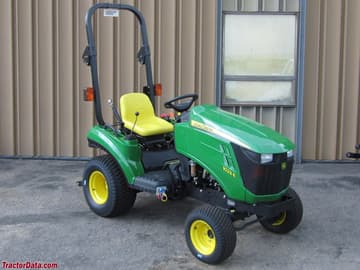

John Deere 1023E

The John Deere 1023E is a tractor produced by John Deere. It is equipped with a 55.1 ci 0.9 L engine. The rated power output is 23.5 hp 17.5 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1,345 lbs 610 kg.

Overview

	2011 - 2025 Model year 2011-20152016-2025 1 Sub-Compact SeriesSub-Compact Utility tractor
2011 - 2025
Model year 2011-20152016-2025
1 Sub-Compact Series
Sub-Compact Utility tractor

Production
Manufacturer	John Deere
Sub-Compact Utility tractor
Built in Augusta, Georgia, USA
Original price	$11,296 (2011 )
	$12,062 (2017 )

John Deere 1023E Engine
Yanmar 0.9L 3-cyl diesel
Engine details ...

John Deere 1023E Transmission
hydrostatic
Transmission details ...

John Deere 1023E Power
Engine (gross)	23.5 hp 17.5 kW
PTO (claimed)	15.3 hp 11.4 kW

Mechanical
Four-wheel drive
Differential lock	standard
Power steering
Wet disc brakes
Two-post ROPS.

Capacity
Fuel	5.6 gal 21.2 L
Hydraulic system	3.25 gal 12.3 L

Hydraulics
Type	open center
Capacity	3.25 gal 12.3 L
Pressure	2000 psi 137.9 bar
Valves	2 to 3
Total flow	6.3 gpm 23.8 lpm

Tractor hitch
Rear Type	Limited I
Rear lift (at ends)	1,433 lbs 650 kg
Rear lift (at 24"/610mm)	681 lbs 308 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
Engine RPM	540@3200
Mid PTO	independent
Mid PTO Type	2100
Engine RPM	2100@3200

Dimensions & Tires
Wheelbase	57.1 inches 145 cm
Weight	1,345 lbs 610 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	500
Battery volts	12

References
1 Series published in 2012, by John Deere

Engine

Engine Detail — 55.1 ci / 0.9 L Diesel

Manufacturer	Yanmar 3TNM72
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	55.1 ci 0.9 L
Bore/Stroke	2.8x2.9 inches 71 x 74 mm
Emissions	Interim Tier IV
Rated Power (gross)	23.5 hp 17.5 kW
Fuel system	indirect injection
Air cleaner	dry dual stage
Pre-heating	glow plugs
Rated RPM	3200
Operating RPM	1400-3370
Starter	electric
Starter volts	12
Coolant capacity	3.9 qts 3.7 L
Coolant change	2000 h
Oil capacity	2.9 qts 2.7 L
Oil change	200 h

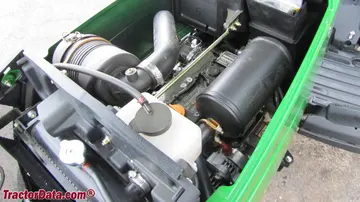

John Deere 1023E Engine

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	13 qts 12.3 L
Oil type	JD Hy-Gard
Hydrostatic transmission operated by two foot pedals and left-hand range shift. Tractor must be stopped to shift range.
With 26x12.00-12 R4 rear tires.

	JD Hy-Gard

Dimensions

John Deere 1023E Tires
Lawn/turf front	18x8.5-10
Lawn/turf rear	26x12.00-12
Industrial front	18x8.5-10
Industrial rear	26x12.00-12

Dimensions
Wheelbase	57.1 inches 145 cm
Length	87.6 inches 222 cm
	102.6 inches (with hitch) 260 cm
Width	47.2 inches (R3 tires) 119 cm
Height (hood)	41.5 inches 105 cm
Height (ROPS)	78.6 inches 199 cm
Clearance (front axle)	12.3 inches 31 cm
Flanged rear axle
Front tread	32.2 inches 81 cm
Rear tread	35.2 inches 89 cm

John Deere 1023E Weight
Operating	1,345 lbs 610 kg
Max front axle	1,349 lbs 611 kg
Max rear axle	1,576 lbs 714 kg

Attachments

Attachment overview
54" mid-mount mower deck
60" mid-mount mower deck
John Deere D120 loader
John Deere H120 loader
