Mahindra 2538

The Mahindra 2538 is a tractor produced by Mahindra. It is equipped with a 166.7 ci 2.7 L engine. The rated power output is 37.4 hp 27.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1271 lbs 576 kg.

Overview

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Production
Distributor	Mahindra
Manufacturer	TYM
Compact Utility tractor
Original price	$20,790 (2016 ROPS )
	$28,220 (2016 Cab )

Mahindra 2538 Engine
Mahindra 2.7L 4-cyl diesel
Fuel tank	9 gal 34.1 L
Engine details ...

Mahindra 2538 Transmission
hydrostatic
Transmission details ...

Mahindra 2538 Power
Engine	37.4 hp 27.9 kW
PTO (claimed)	31 hp 23.1 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post foldable ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Rear valves	1 or 2
Pump flow	7.6 gpm 28.8 lpm
Steering flow	4.1 gpm 15.5 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2400

Dimensions & Tires
Weight	3130 to 3351 pounds
Front tire	7-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	90
Charging volts	12
Battery CCA	800
Battery volts	12
Battery AH	80

Engine

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Engine Detail — 166.7 ci / 2.7 L Diesel

Manufacturer	Mahindra
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	166.7 ci 2.7 L
Bore/Stroke	3.50x4.33 inches 89 x 110 mm
Emissions	Tier IV
Power	37.4 hp 27.9 kW
Fuel system	direct injection
Compression	18.7:1
Rated RPM	2400
Starter	electric
Starter volts	12

Transmission

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
Clutch	wet disc

Dimensions

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Mahindra 2538 Tires
Standard tires (ag)	Front: 7-16. Rear: 11.2-24
Industrial front	10-16.5
Industrial rear	43x16-20

Dimensions
ROPS Length	119.3 inches 303 cm
Cab Length	121.2 inches 307 cm
Width	59.8 inches 151 cm
Height (ROPS)	94.4 inches 239 cm
Height (cab)	92.5 inches 234 cm
ROPS Weight	3130 lbs 1419 kg
Cab Weight	3351 lbs 1520 kg

Attachments

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Attachment overview
Front-end loader
Backhoe

Mahindra 2538B Backhoe
Backhoe type	Mahindra 2538B Backhoe
Weight	1271 lbs 576 kg
Transport height	119 inches 302 cm
Digging depth	94 inches 238 cm
2-Foot flat digging depth	92 inches 233 cm
Reach from pivot	127 inches 322 cm
Loading height	63 inches 160 cm
Bucket Rotation	175°
Swing Arc	180°
Bucket force	3190 lbs 1446 kg
Dipperstick force	1980 lbs 898 kg

Photos

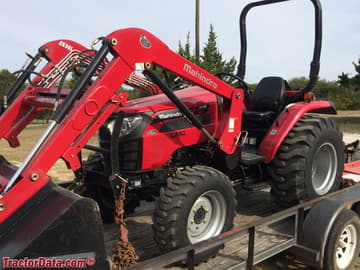

Mahindra 2538
