Mahindra 2555

The Mahindra 2555 is a tractor produced by Mahindra. It is equipped with a 161.5 ci 2.6 L engine. The rated power output is 55 hp 41.0 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1425 lbs 646 kg.

Overview

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Production
Distributor	Mahindra
Manufacturer	TYM
Compact Utility tractor
Original price	$27,068 (2016 shuttle ROPS )
	$28,553 (2016 hydrostatic ROPS )
	$34,493 (2016 shuttle cab )
	$35,978 (2016 hydrostatic cab )

Mahindra 2555 Engine
Mahindra 2.6L 3-cyl diesel
Fuel tank	16 gal 60.6 L
Engine details ...

Mahindra 2555 Power
Engine	55 hp 41.0 kW
Shuttle PTO (claimed)	44.5 hp 33.2 kW
Hydro PTO (claimed)	42.4 hp 31.6 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post foldable ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Rear valves	1 or 2
Shuttle Pump flow	9.5 gpm 36.0 lpm
Hydro Pump flow	9.7 gpm 36.7 lpm
Steering flow	5 gpm 18.9 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	3314 lbs 1503 kg
Rear Arms	telescopic stabilizers

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2300

Dimensions & Tires
Weight	4056 to 4299 pounds
Front tire	9.5x16
Rear tire	14.9x24
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	90
Charging volts	12
Battery volts	12
Battery AH	96

Engine

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Engine Detail — 161.5 ci / 2.6 L Diesel

Manufacturer	Mahindra
Configuration	turbocharged intercooled diesel, 3-cylinder, liquid-cooled
Displacement	161.5 ci 2.6 L
Bore/Stroke	3.78x4.80 inches 96 x 122 mm
Emissions	Tier IV
Power	55 hp 41.0 kW
Fuel system	direct injection
Compression	17.2:1
Rated RPM	2300
Starter	electric
Starter volts	12

Transmission

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Transmission options
12-speed shuttle
hydrostatic

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse
Clutch	dry disc

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Mahindra 2555 Tires
Standard tires (ag)	Front: 9.5x16. Rear: 14.9x24
Lawn/turf front	LSW305-521
Lawn/turf rear	LSW750-648
Industrial front	12x16.5
Industrial rear	16.9x24

Dimensions
Length	134.1 inches 340 cm
ROPS Width	71.1 inches 180 cm
Cab Width	71.5 inches 181 cm
Height (ROPS)	102 inches 259 cm
Height (cab)	102 inches 259 cm
ROPS Weight	4056 lbs 1839 kg
Cab Weight	4299 lbs 1950 kg

Attachments

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Attachment overview
Front-end loader
Backhoe

Mahindra 75BL Backhoe
Backhoe type	Mahindra 75BL Backhoe
Weight	1425 lbs 646 kg
Transport height	93 inches 236 cm
Digging depth	116 inches 294 cm
2-Foot flat digging depth	115.4 inches 293 cm
Reach from pivot	153 inches 388 cm
Loading height	82 inches 208 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	5676 lbs 2574 kg
Dipperstick force	5754 lbs 2610 kg

Photos

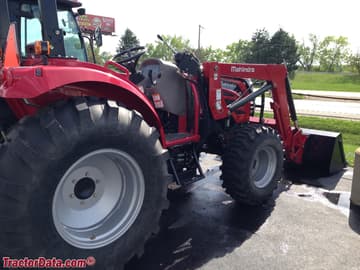

Mahindra 2555

Mahindra 2555

Mahindra 2555
