Mahindra 2645

The Mahindra 2645 is a tractor produced by Mahindra. It is equipped with a 166.7 ci 2.7 L engine. The rated power output is 44 hp 32.8 kW. Transmission: 12 forward and reverse. Operating weight: 1250 lbs 567 kg.

Overview

	2018 - 2600 SeriesCompact Utility tractorTYM built
2018 -
2600 Series
Compact Utility tractor
TYM built

2018 -
2600 Series
Compact Utility tractor
TYM built

Production
Distributor	Mahindra
Manufacturer	TYM
Compact Utility tractor
Original price	$26,351 (2021 ROPS )
	$35,577 (2021 ROPS )

Mahindra 2645 Engine
Mahindra 2.7L 4-cyl diesel
Fuel tank	9 gal 34.1 L
Engine details ...

Mahindra 2645 Transmission
12-speed shuttle
Transmission details ...

Mahindra 2645 Power
Engine	44 hp 32.8 kW
PTO (claimed)	35 hp 26.1 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Rear valves	1 OptOptional
Pump flow	8.2 gpm 31.0 lpm
ROPS Steering flow	4.1 gpm 15.5 lpm
Cab Steering flow	4.5 gpm 17.0 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2650

Dimensions & Tires
Weight	3285 to 3506 pounds
Front tire	8.3/12.4x24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12

References
2600 Series published in 2018, by Mahindra
2600 Series published in 2021, by Mahindra

Engine

	2018 - 2600 SeriesCompact Utility tractorTYM built
2018 -
2600 Series
Compact Utility tractor
TYM built

2018 -
2600 Series
Compact Utility tractor
TYM built

Engine Detail — 166.7 ci / 2.7 L Diesel

Manufacturer	Mahindra
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	166.7 ci 2.7 L
Bore/Stroke	3.50x4.33 inches 89 x 110 mm
Emissions	Tier IV
Power	44 hp 32.8 kW
Fuel system	direct injection
Starter	electric
Starter volts	12

Transmission

	2018 - 2600 SeriesCompact Utility tractorTYM built
2018 -
2600 Series
Compact Utility tractor
TYM built

2018 -
2600 Series
Compact Utility tractor
TYM built

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse

Dimensions

	2018 - 2600 SeriesCompact Utility tractorTYM built
2018 -
2600 Series
Compact Utility tractor
TYM built

2018 -
2600 Series
Compact Utility tractor
TYM built

Mahindra 2645 Tires
Standard tires (ag)	Front: 8.3/12.4x24. Rear:
Industrial front	10-16.5
Industrial rear	43x16-20

Dimensions
Length	119.3 inches 303 cm
Width	63.2 inches 160 cm
Height	94.5 inches 240 cm
ROPS Weight	3285 lbs 1490 kg
Cab Weight	3506 lbs 1590 kg
Ground clearance	12.8 inches 32 cm

Attachments

	2018 - 2600 SeriesCompact Utility tractorTYM built
2018 -
2600 Series
Compact Utility tractor
TYM built

2018 -
2600 Series
Compact Utility tractor
TYM built

Attachment overview
Front-end loader
Backhoe

Mahindra 60B Backhoe
Backhoe type	Mahindra 60B Backhoe
Weight	1250 lbs 567 kg
Transport height	88 inches 223 cm
Digging depth	95 inches 241 cm
2-Foot flat digging depth	94.5 inches 240 cm
Reach from pivot	129 inches 327 cm
Loading height	73 inches 185 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	3439 lbs 1559 kg
Dipperstick force	2214 lbs 1004 kg

Photos

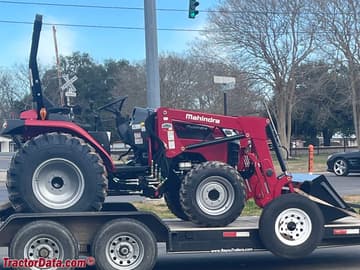

Mahindra 2645
