Mahindra 2565

The Mahindra 2565 is a tractor produced by Mahindra. It is equipped with a 161.5 ci 2.6 L engine. The rated power output is 65 hp 48.5 kW. Transmission: 12 forward and reverse. Operating weight: 1425 lbs 646 kg.

Overview

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Production
Distributor	Mahindra
Manufacturer	TYM
Compact Utility tractor
Original price was $38,813 in 2016

Mahindra 2565 Engine
Mahindra 2.6L 3-cyl diesel
Fuel tank	16 gal 60.6 L
Engine details ...

Mahindra 2565 Transmission
12-speed shuttle
Transmission details ...

Mahindra 2565 Power
Engine	65 hp 48.5 kW
PTO (claimed)	50 hp 37.3 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
Rear valves	1 or 2
Pump flow	11 gpm 41.6 lpm
Steering flow	5.4 gpm 20.4 lpm

Tractor hitch
Rear Type	II
Control	position and draftcontrol
Rear lift	3527 lbs 1599 kg
Rear Arms	telescopic stabilizers

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2300

Dimensions & Tires
Weight	5070 lbs 2299 kg
Front tire	9.5x20
Rear tire	14.9x28
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	90
Charging volts	12
Battery volts	12
Battery AH	96

Engine

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Engine Detail — 161.5 ci / 2.6 L Diesel

Manufacturer	Mahindra
Configuration	turbocharged intercooled diesel, 3-cylinder, liquid-cooled
Displacement	161.5 ci 2.6 L
Bore/Stroke	3.78x4.80 inches 96 x 122 mm
Emissions	Tier IV
Power	65 hp 48.5 kW
Fuel system	direct injection
Compression	17.2:1
Rated RPM	2300
Starter	electric
Starter volts	12

Transmission

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse
Clutch	dry disc

Dimensions

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Mahindra 2565 Tires
Standard tires (ag)	Front: 9.5x20. Rear: 14.9x28
Lawn/turf front	LSW305-521
Lawn/turf rear	LSW750-648
Industrial front	10.5/80x18
Industrial rear	18.4x24

Dimensions
Length	142 inches 360 cm
Width	71.5 inches 181 cm
Height (cab)	99.2 inches 251 cm
Weight	5070 lbs 2299 kg

Attachments

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Attachment overview
Front-end loader
Backhoe

Mahindra 75BH Backhoe
Backhoe type	Mahindra 75BH Backhoe
Weight	1425 lbs 646 kg
Transport height	93 inches 236 cm
Digging depth	116 inches 294 cm
2-Foot flat digging depth	115.4 inches 293 cm
Reach from pivot	153 inches 388 cm
Loading height	82 inches 208 cm
Bucket Rotation	180°
Swing Arc	180°
Bucket force	5676 lbs 2574 kg
Dipperstick force	5754 lbs 2610 kg

Photos

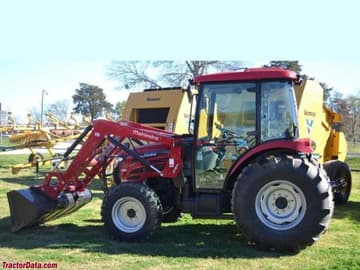

Mahindra 2565
