Mahindra 2638
The Mahindra 2638 is a tractor produced by Mahindra. It is equipped with a 166.7 ci 2.7 L engine. The listed engine power is Diesel (listed): 37.4 hp / 27.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1250 lbs 567 kg.
Engine Power
Diesel (listed): 37.4 hp / 27.9 kW
Fuel & Capacities
9 gal
34.1 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
1250 lbs
567 kg
Overview
 | 2018 -
2600 SeriesCompact Utility tractorTYM built |
|---|---|
2018 - | |
2600 Series | |
Compact Utility tractor | |
TYM built | |
2018 - | |
|---|---|
2600 Series | |
Compact Utility tractor | |
TYM built |
Production | |
|---|---|
Distributor | Mahindra |
Manufacturer | TYM |
Compact Utility tractor | |
Original price was $24,080 in 2018 | |
Mahindra 2638 Engine | |
|---|---|
Mahindra 2.7L 4-cyl diesel | |
Fuel tank | 9 gal
34.1 L |
Engine details ...  | |
Mahindra 2638 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mahindra 2638 Power | |
|---|---|
Engine | 37.4 hp
27.9 kW |
PTO (claimed) | 31 hp
23.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Rear valves | 1 OptOptional |
Pump flow | 7.6 gpm
28.8 lpm |
Steering flow | 4.1 gpm
15.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift | 2646 lbs
1200 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2385 |
Mid PTO | optional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Weight | 3130 to 3351 pounds |
Front tire | 7-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 90 |
Battery volts | 12 |
References | |
|---|---|
 | |
2600 Series published in 2018, by Mahindra | |
2600 Series published in 2021, by Mahindra |
Engine
| 2018 -
2600 SeriesCompact Utility tractorTYM built |
|---|---|
2018 - | |
2600 Series | |
Compact Utility tractor | |
TYM built | |
2018 - | |
|---|---|
2600 Series | |
Compact Utility tractor | |
TYM built |
Engine Detail — 166.7 ci / 2.7 L Diesel
Manufacturer | Mahindra |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 166.7 ci
2.7 L |
Bore/Stroke | 3.50x4.33 inches
89 x 110 mm |
Emissions | Tier IV |
Power | 37.4 hp
27.9 kW |
Fuel system | direct injection |
Starter | electric |
Starter volts | 12 |
Transmission
| 2018 -
2600 SeriesCompact Utility tractorTYM built |
|---|---|
2018 - | |
2600 Series | |
Compact Utility tractor | |
TYM built | |
2018 - | |
|---|---|
2600 Series | |
Compact Utility tractor | |
TYM built |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Dimensions
| 2018 -
2600 SeriesCompact Utility tractorTYM built |
|---|---|
2018 - | |
2600 Series | |
Compact Utility tractor | |
TYM built | |
2018 - | |
|---|---|
2600 Series | |
Compact Utility tractor | |
TYM built |
Mahindra 2638 Tires | |
|---|---|
Standard tires (ag) | Front: 7-16. Rear: 11.2-24 |
Industrial front | 10-16.5 |
Industrial rear | 43x16-20 |
Dimensions | |
|---|---|
Length | 119.3 inches
303 cm |
Width | 63.2 inches
160 cm |
Height | 94.5 inches
240 cm |
ROPS Weight | 3130 lbs
1419 kg |
Cab Weight | 3351 lbs
1520 kg |
Ground clearance | 12.8 inches
32 cm |
Attachments
| 2018 -
2600 SeriesCompact Utility tractorTYM built |
|---|---|
2018 - | |
2600 Series | |
Compact Utility tractor | |
TYM built | |
2018 - | |
|---|---|
2600 Series | |
Compact Utility tractor | |
TYM built |
Attachment overview | |
|---|---|
Front-end loader | |
Backhoe |
Mahindra 60B Backhoe | |
|---|---|
Backhoe type | Mahindra 60B Backhoe |
Weight | 1250 lbs
567 kg |
Transport height | 88 inches
223 cm |
Digging depth | 95 inches
241 cm |
2-Foot flat digging depth | 94.5 inches
240 cm |
Reach from pivot | 129 inches
327 cm |
Loading height | 73 inches
185 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 3439 lbs
1559 kg |
Dipperstick force | 2214 lbs
1004 kg |
Photos

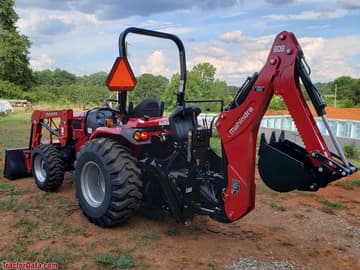

Mahindra 2638
Mahindra 2638
Mahindra 2638
Mahindra 2638 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Mahindra 2638 based on its 37.4 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mahindra 2638.
Estimated Continuous Field Runtime: 4.6 hrs
Approximately 4.6 hours of continuous field operation at ~75% rated power on a full tank (9 gal / 34.1 L).
Estimated 75% Load Fuel Burn~1.9 gal/hr (7.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mahindra 2638 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mahindra 2638.
Converted Equivalents:
Horsepower (HP)37.4 hp
Kilowatts (kW)27.9 kW
Metric Horsepower (PS / CV)37.9 PS
Direct Competitor Comparison
Compare Mahindra 2638 against same-era industry alternatives in the same horsepower class.
Current Model
Mahindra
Mahindra 2638
Engine Power:Diesel (listed): 37.4 hp / 27.9 kW
★ Baseline Reference
