Mahindra 2655
The Mahindra 2655 is a tractor produced by Mahindra. It is equipped with a 161.5 ci 2.6 L engine. The listed engine power is Diesel (listed): 55 hp / 41.0 kW. Transmission: 12 forward and reverse. Operating weight: 1100 lbs 498 kg.
Engine Power
Diesel (listed): 55 hp / 41.0 kW
Fuel & Capacities
16 gal
60.6 L
Transmission
12 forward and reverse
Operating Weight
1100 lbs
498 kg
Overview
 | 2018 - 2020
2600 SeriesCompact Utility tractorTYM built
2600 Series
Compact Utility tractor
TYM built |
|---|
Production | |
|---|---|
Distributor | Mahindra |
Manufacturer | TYM |
Compact Utility tractor | |
Original price was $32,270 in 2018 | |
Mahindra 2655 Engine | |
|---|---|
Mahindra 2.6L 3-cyl diesel | |
Fuel tank | 16 gal
60.6 L |
Engine details ...  | |
Mahindra 2655 Power | |
|---|---|
Engine | 55 hp
41.0 kW |
PTO (claimed) | 44.5 hp
33.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Rear valves | 1 |
Gear Pump flow | 9.5 gpm
36.0 lpm |
Hydro Pump flow | 9.7 gpm
36.7 lpm |
Steering flow | 5 gpm
18.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift | 3314 lbs
1503 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2300 |
Mid PTO | optional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Weight | 4056 to 4299 pounds |
Front tire | 9.5x16 |
Rear tire | 14.9x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 90 |
Battery volts | 12 |
References | |
|---|---|
 | |
2600 Series published in 2018, by Mahindra |
Engine
Engine Detail — 161.5 ci / 2.6 L Diesel
Manufacturer | Mahindra |
Configuration | turbocharged diesel, 3-cylinder, liquid-cooled |
Displacement | 161.5 ci
2.6 L |
Bore/Stroke | 3.78x4.80 inches
96 x 122 mm |
Emissions | Tier IV |
Power | 55 hp
41.0 kW |
Fuel system | direct injection |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
hydrostatic | |
12-speed shuttle |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Transmission — 12 forward and reverse shuttle
Type | shuttle |
Gears | 12 forward and reverse |
Dimensions
Mahindra 2655 Tires | |
|---|---|
Standard tires (ag) | Front: 9.5x16. Rear: 14.9x24 |
Lawn/turf front | LSW305-521 |
Lawn/turf rear | LSW570-648 |
Industrial front | 12-16.5 |
Industrial rear | 16.9-24 |
Dimensions | |
|---|---|
Length | 135 inches
342 cm |
Width | 71.1 inches
180 cm |
Height | 102 inches
259 cm |
ROPS Weight | 4056 lbs
1839 kg |
Cab Weight | 4299 lbs
1950 kg |
Ground clearance | 13.8 inches
35 cm |
Attachments
Attachment overview | |
|---|---|
Front-end loader | |
Backhoe |
Mahindra 65B Backhoe | |
|---|---|
Backhoe type | Mahindra 65B Backhoe |
Weight | 1100 lbs
498 kg |
Transport height | 98 inches
248 cm |
Digging depth | 108 inches
274 cm |
2-Foot flat digging depth | 104 inches
264 cm |
Reach from pivot | 150 inches
381 cm |
Loading height | 90 inches
228 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 3800 lbs
1723 kg |
Dipperstick force | 2400 lbs
1088 kg |
Photos

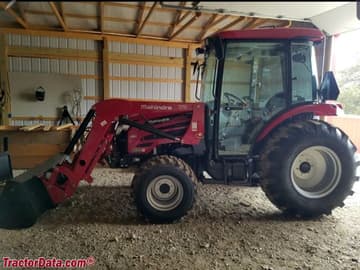

Mahindra 2655
Recommended Implements & Sizing Guide
Engineering recommendations for Mahindra 2655 based on its 55 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mahindra 2655.
Estimated Continuous Field Runtime: 5.6 hrs
Approximately 5.6 hours of continuous field operation at ~75% rated power on a full tank (16 gal / 60.6 L).
Estimated 75% Load Fuel Burn~2.9 gal/hr (10.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mahindra 2655 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mahindra 2655.
Converted Equivalents:
Horsepower (HP)55 hp
Kilowatts (kW)41 kW
Metric Horsepower (PS / CV)55.8 PS
Direct Competitor Comparison
Compare Mahindra 2655 against same-era industry alternatives in the same horsepower class.
Current Model
Mahindra
Mahindra 2655
Engine Power:Diesel (listed): 55 hp / 41.0 kW
★ Baseline Reference
