Massey Ferguson 1014

The Massey Ferguson 1014 is a tractor produced by Massey Ferguson. It is equipped with a 353.9 ci 5.8 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW. Transmission: 12 forward and 4 reverse. Operating weight: 9,978 lbs (2WD) 4526 kg.

Engine Power

Diesel (listed): 95 hp / 70.8 kW

Fuel & Capacities

44.9 gal 169.9 L

Transmission

12 forward and 4 reverse

Operating Weight

9,978 lbs (2WD) 4526 kg

Overview

	1978 - 1990 1004 SeriesRow-Crop tractorLandini built 1004 Series Row-Crop tractor Landini built

Production
Distributor	Massey Ferguson
Manufacturer	Landini
Row-Crop tractor

Massey Ferguson 1014 Engine
Perkins 5.8L 6-cyl diesel
Fuel tank	44.9 gal 169.9 L
Engine details ...

Massey Ferguson 1014 Transmission
12-speed partially synchronized
Transmission details ...

Massey Ferguson 1014 Power
Engine	95 hp 70.8 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Cab standard

Hydraulics
Total flow	14.0 gpm 53.0 lpm

Tractor hitch
Rear Type	II
Rear lift	10,143 lbs 4600 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2082
	1000@2090

Dimensions & Tires
Wheelbase	102.8 inches 261 cm
Weight	9978 to 10904 pounds
Front tire	11.00-16
Rear tire	18.4-38
Full dimensions and tires ...

References

1014 published in 1984, by Massey Ferguson

Engine

Engine Detail — 353.9 ci / 5.8 L Diesel

Manufacturer	Perkins A6.3541
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	353.9 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	95 hp 70.8 kW
Rated RPM	2100
Torque	269.2 lb-ft 365.0 Nm
Torque RPM	1350

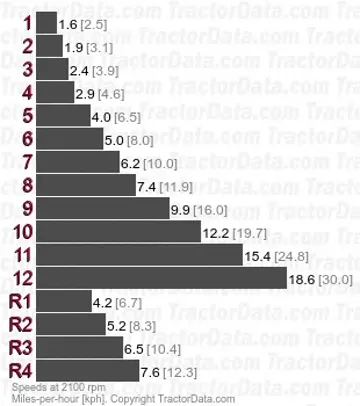

Transmission

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse

Dimensions

Massey Ferguson 1014 Tires
Ag front	11.00-16
Ag rear	18.4-38
Ag front	13.6-28
Ag rear	18.4-38

Dimensions
Wheelbase	102.8 inches 261 cm
Length	174. inches 441 cm
Width	85 inches 215 cm
Height (cab)	111.6 inches 283 cm
Weight	9,978 lbs (2WD) 4526 kg
	10,904 lbs (4WD) 4946 kg
Ground clearance	17.7 inches 44 cm
Front tread	65 inches 165 cm
Rear tread	63 to 82.7 inches 160 to 210 cm

Photos

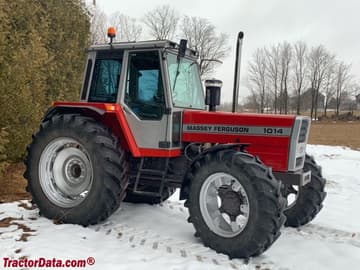

Massey Ferguson 1014

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1014 based on its 95 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1014.

Estimated Continuous Field Runtime: 9.1 hrs

Approximately 9.1 hours of continuous field operation at ~75% rated power on a full tank (44.9 gal / 170 L).

Estimated 75% Load Fuel Burn~4.9 gal/hr (18.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
