Massey Ferguson 1030

The Massey Ferguson 1030 is a tractor produced by Massey Ferguson. It is equipped with a 86.9 ci 1.4 L engine. The listed engine power is Diesel (listed): 26 hp / 19.4 kW. Transmission: 12 forward and 3 reverse. Operating weight: 2398 to 2815 pounds.

Engine Power

Diesel (listed): 26 hp / 19.4 kW

Fuel & Capacities

7.8 gal 29.5 L

Transmission

12 forward and 3 reverse

Operating Weight

2398 to 2815 pounds

Overview

	1984 - 1991 1000 Compact SeriesCompact Utility tractorToyosha built 1000 Compact Series Compact Utility tractor Toyosha built

Production
Distributor	Massey Ferguson
Manufacturer	Toyosha
Compact Utility tractor
Original price was $12,000 in 1991

Variants
1030L	industrial tow tractor

Massey Ferguson 1030 Engine
Toyosha 1.4L 3-cyl diesel
Fuel tank	7.8 gal 29.5 L
Engine details ...

Massey Ferguson 1030 Transmission
12-speed gear
Transmission details ...

Massey Ferguson 1030 Power
Engine	26 hp 19.4 kW
PTO (claimed)	23 hp 17.2 kW
Drawbar (tested)	18.29 hp 13.6 kW
PTO (tested)	23.35 hp 17.4 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Steering	manual (2WD)
	power assist (4WD)
Differential mechanical disc brakes
Open operator station. Two-post ROPS available.

Hydraulics
Type	open center
Pump flow	5.4 gpm 20.4 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1729 lbs 784 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540 (1.375)
Front PTO	independent OptOptional
Clutch	electric

Dimensions & Tires
Wheelbase	61.3 inches 155 cm
Weight	2398 to 2815 pounds
Front tire	5.00x15
Rear tire	11.2x24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

Loaders - Compact and Agricultural published in 1989, by Massey Ferguson
Compact Tractors published in 1986, by Massey Ferguson
Compact Tractors and Implements published in 1987, by Massey Ferguson
1030 published in 1986, by Massey Ferguson

Engine

Engine Detail — 86.9 ci / 1.4 L Diesel

Manufacturer	Toyosha MS142
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	86.9 ci 1.4 L
Bore/Stroke	3.228x3.543 inches 82 x 90 mm
Power	26 hp 19.4 kW
Fuel system	indirect injection
Air cleaner	dual dry element
Pre-heating	glow plugs
Compression	23:1
Rated RPM	2500
Firing order	1-3-2
Starter volts	12
Oil capacity	3.7 qts 3.5 L
Coolant capacity	4.4 qts 4.2 L

Transmission

Transmission — 12 forward and 3 reverse gear

Type	gear
Gears	12 forward and 3 reverse
Clutch	215.9mm dry disc
Oil capacity	29.6 qts 28.0 L

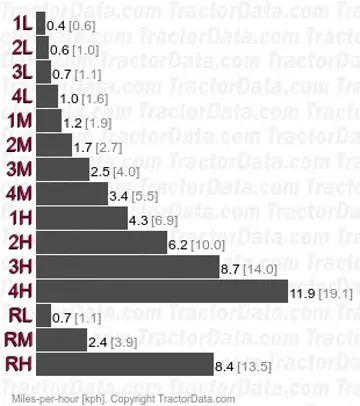

Four gears (1-4) plus reverse (R) in three ranges (L/M/H).

Dimensions

Massey Ferguson 1030 Tires
Ag front	5.00x15 (2WD)
	6.00x14 (4WD)
Ag rear	11.2x24
Lawn/turf front	24x8.50-12
Lawn/turf rear	13.6x16

Dimensions
Wheelbase	61.3 inches 155 cm
Length	105.3 inches 267 cm
Width	52.7 inches 133 cm
Height (steering wheel)	57.1 inches (2WD) 145 cm
	56.3 inches (4WD) 143 cm
Ground clearance	15.7 inches (2WD) 39 cm
	11.6 inches (4WD) 29 cm

Massey Ferguson 1030 Weight
Shipping	2398 lbs (2WD) 1087 kg
	2596 lbs (4WD) 1177 kg
Operating	2815 lbs (4WD) 1276 kg

Tests

Nebraska Tractor Test 1553
Diesel 12-speed 4WD March 18 - 28, 1985 Link: Nebraska Tractor Test 1553 file
PTO performance
Power at rated engine speed	23.35 hp 17.4 kW
Fuel use	1.8 gal/hour 6.8 l/hour
Power at rated PTO speed	22.80 hp 17.0 kW
Fuel use	1.8 gal/hour 6.8 l/hour
Drawbar performance
Max power	18.29 hp 13.6 kW
Fuel use	1.8 gal/hour 6.8 l/hour
Max pull	2277 lbs 1032 kg

Attachments

Attachment overview
72" mid-mount mower deck
Blade
Front-end loader
Backhoe

72" Mower deck
Type	mid-mount Massey Ferguson 1019
Cutting width	72 inches 182 cm

Massey Ferguson 1017 Backhoe
Backhoe type	Massey Ferguson 1017 Backhoe

Photos

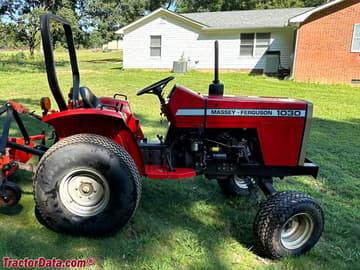

Massey Ferguson 1030

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1030 based on its 26 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1030.

Estimated Continuous Field Runtime: 5.8 hrs

Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (7.8 gal / 29.5 L).

Estimated 75% Load Fuel Burn~1.4 gal/hr (5.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
