Massey Ferguson 1150

The Massey Ferguson 1150 is a tractor produced by Massey Ferguson. It is equipped with a 503.8 ci 8.3 L engine. The rated power output is 146 hp 108.9 kW. Transmission: Multi-Power. Operating weight: 13370 to 13590 pounds.

Overview

	1970 - 1972 1000 SeriesRow-Crop tractor
1970 - 1972
1000 Series
Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Original price was $14,000 in 1972

Massey Ferguson 1150 Engine
Perkins 8.3L 8-cyl diesel
Engine details ...

Massey Ferguson 1150 Transmission
12-speed two-speed power shift
Transmission details ...

Massey Ferguson 1150 Power
Engine	146 hp 108.9 kW
Drawbar (claimed)	120 hp 89.5 kW
PTO (claimed)	135 hp 100.7 kW
Drawbar (tested)	120.06 hp 89.5 kW
PTO (tested)	135.60 hp 101.1 kW
Performance test details ...

Mechanical
Two-wheel drive
Final drives	planetary
Power steering
Differential hydraulic disc brakes
Open operator station. Cab optional with available air-conditioning.

Capacity
Fuel	50 gal 189.2 L
Hydraulic system	17 gal 64.3 L

Hydraulics
Type	closed center
Capacity	17 gal 64.3 L
Valves	2
Pump flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	II
Control	position and draft control

Power Take-off (PTO)
Rear PTO	independent
Clutch	wet disc
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	107.9 inches 274 cm
Weight	13370 to 13590 pounds
Front tire	11.00-16
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Batteries	2
Battery volts	12

References
MF Row Crop Tractors published in 1969, by Massey Ferguson
MF 1100 Series Tractor Product Information Manual published by Massey Ferguson

Engine

Engine Detail — 503.8 ci / 8.3 L Diesel

Manufacturer	Perkins AV8.510
Fuel Type	Diesel
Configuration	8-cylinder 16-valve, liquid-cooled V-8
Displacement	503.8 ci 8.3 L
Bore/Stroke	4.25x4.50 inches 108 x 114 mm
Power	146 hp 108.9 kW
Air cleaner	dual dry element
Compression	17.5:1
Rated RPM	2200
Torque	539 lb-ft 730.9 Nm
Torque RPM	1450
Starter volts	12
Oil capacity	20 qts 18.9 L
Coolant capacity	48 qts 45.4 L

Transmission

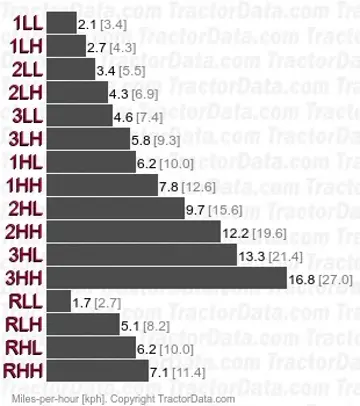

Transmission — Multi-Power

Transmission	Multi-Power
Type	two-speed power shift
Gears	12 forward and 4 reverse
Clutch	279.4mm cerametallic disc
Oil capacity	64 qts 60.6 L
Three gears in two ranges with the two-speed Multi-Power power shift.

Dimensions

Massey Ferguson 1150 Tires
Ag front	11.00-16
Ag rear	18.4-34 (row-crop)
	18.4-38 (Western)
Ag rear	23.1x34
	24.5x32
	30.5x32 (Western)

Dimensions
Wheelbase	107.9 inches 274 cm
Length	171 inches 434 cm
Width	94 inches 238 cm
Height (steering wheel)	74.6 inches 189 cm
Height (cab)	113.5 inches 288 cm
Clearance (front axle)	31.5 inches 80 cm
Clearance (drawbar)	15.9 inches 40 cm
Rear axle	3.25 inch diameter 82 mm
Front tread	56 to 8 inches 142 to 20 cm
Rear tread	60 to 96 inches 152 to 243 cm
Rear tread	60 to 120 inches 152 to 304 cm

Massey Ferguson 1150 Weight
Shipping	13370 lbs 6064 kg
Operating	13590 lbs 6164 kg
Ballasted	22625 lbs 10262 kg

Tests

Nebraska Tractor Test 1049
Diesel 12-speed 2WD September 11 - 19, 1970 Link: Nebraska Tractor Test 1049 file
PTO performance
Power at rated engine speed	135.60 hp 101.1 kW
Fuel use	9.0 gal/hour 34.1 l/hour
Power at rated PTO speed	128.78 hp 96.0 kW
Fuel use	8.5 gal/hour 32.2 l/hour
Drawbar performance
Max power	120.06 hp 89.5 kW
Fuel use	8.9 gal/hour 33.7 l/hour
Gear 3L-L used for power test.
Max pull	17,260 lbs 7829 kg
Gear 1L-H used for pull test.

Photos

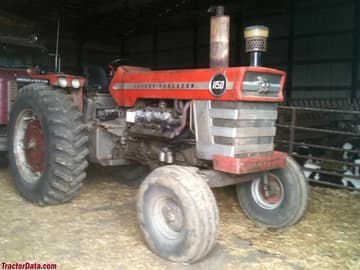

Massey Ferguson 1150

Massey Ferguson 1150.

Massey Ferguson 1150.

Massey Ferguson 1150 with cab.

Refurbished Massey Ferguson 1150, right side.
