Massey Ferguson 1250
The Massey Ferguson 1250 is a tractor produced by Massey Ferguson. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 31.6 hp 23.6 kW. Transmission: 16 forward and reverse. Operating weight: 2690 to 2746 pounds.
Engine Power
31.6 hp
23.6 kW
Fuel & Capacities
7.9 gal
29.9 L
Transmission
16 forward and reverse
Operating Weight
2690 to 2746 pounds
Massey Ferguson 1250 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Iseki |
Compact Utility tractor | |
Original price was $16,000 in 1999 | |
Massey Ferguson 1250 Engine | |
|---|---|
Iseki 1.5L 3-cyl diesel | |
Engine details ...  |
Massey Ferguson 1250 Transmission | |
|---|---|
16-speed synchro shuttle | |
Transmission details ...  |
Massey Ferguson 1250 Power | |
|---|---|
Engine (gross) | 33 hp
24.6 kW |
Engine (net) | 31.6 hp
23.6 kW |
PTO (claimed) | 27.3 hp
20.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | power assist |
Wet disc brakes | |
Two-post folding ROPS. | |
Capacity | |
|---|---|
Fuel | 7.9 gal
29.9 L |
Hydraulic system | 6.6 gal
25.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 6.6 gal
25.0 L |
Pressure | 2133 psi
147.1 bar |
Pump flow | 6.3 gpm
23.8 lpm |
Total flow | 9.6 gpm
36.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 2866 lbs
1300 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2389 |
Mid PTO | independent OptOptional |
Clutch | electro-hydraulic |
Mid PTO Type | 1960 |
Engine RPM | 1960@2600 |
Dimensions & Tires | |
|---|---|
Wheelbase | 67.9 inches
172 cm |
Weight | 2690 to 2746 pounds |
Front tire | 5.50-16 |
2WD Rear tire | 12.4-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 40 |
Battery CCA | 622 |
Battery volts | 12 |
References | |
|---|---|
 | |
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson | |
MF 1200 Series Tractors published in 1993, by Massey Ferguson | |
MF 1200 Series published in 1997, by Massey Ferguson | |
MF 1250-2/4WD tractor published by Massey Ferguson |
Engine
| 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |
Engine Detail — 91.4 ci / 1.5 L Diesel
Manufacturer | Iseki E3CD |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.4 ci
1.5 L |
Bore/Stroke | 3.43x3.31 inches
87 x 84 mm |
Power (net) | 31.6 hp
23.6 kW |
Power (gross) | 33 hp
24.6 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Pre-heating | glow plugs |
Compression | 21.8:1 |
Rated RPM | 2600 |
Torque | 74 lb-ft
100.3 Nm |
Torque RPM | 1600 |
Starter volts | 12 |
Coolant capacity | 6.92 qts
6.5 L |
Transmission
| 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |

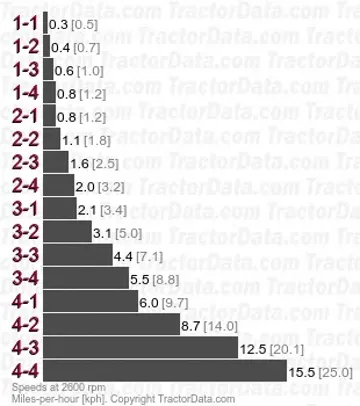

Transmission — 16 forward and reverse synchro shuttle
Type | synchro shuttle |
Gears | 16 forward and reverse |
Clutch | 225mm dry disc |
Four gears in four ranges with shuttle. | |
With 12.4-24 rear tires. Reverse speeds are 5% slower than forward. | |
 | |
Dimensions
| 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |
Massey Ferguson 1250 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 5.50-16. Rear: 12.4-24 |
4WD Standard tires (ag) | Front: 7-16. Rear: 12.4-24 |
2WD Lawn/turf front | 24x8.50-12 |
4WD Lawn/turf front | 212/80D-15 |
Lawn/turf rear | 355/80D-20 |
Dimensions | |
|---|---|
Wheelbase | 67.9 inches
172 cm |
Length | 121.9 inches
309 cm |
Width | 55.3 inches*Minimum width
140 cm |
Height (ROPS) | 85.4 inches
216 cm |
Height (Folded ROPS) | 68.9 inches
175 cm |
2WD Weight | 2690 lbs
1220 kg |
4WD Weight | 2746 lbs
1245 kg |
Ground clearance | 12.2 inches
30 cm |
2WD Front tread | 39 to 50.9 inches
99 to 129 cm |
4WD Front tread | 42.2 inches
107 cm |
Rear tread | 43.3 to 55.9 inches
109 to 141 cm |
Attachments
| 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |
Attachment overview | |
|---|---|
72" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe |
72" Mower deck | |
|---|---|
Type | mid-mount Massey Ferguson 1231 |
Cutting width | 72 inches
182 cm |
Massey Ferguson 1217 Backhoe | |
|---|---|
Backhoe type | Massey Ferguson 1217 Backhoe |
