Massey Ferguson 42

The Massey Ferguson 42 is a tractor produced by Massey Ferguson. It is equipped with a 152 ci 2.5 L engine. The listed engine power is Diesel (listed): 42 hp / 31.3 kW. Transmission: Multipower. Operating weight: 3638 lbs 1650 kg.

Engine Power

Diesel (listed): 42 hp / 31.3 kW

Fuel & Capacities

10.2 gal 38.6 L

Transmission

Multipower

Operating Weight

3638 lbs 1650 kg

Overview

	1962 - 1965 Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France

Massey Ferguson 42 Engine
Perkins 2.5L 3-cyl diesel
Fuel tank	10.2 gal 38.6 L
Engine details ...

Massey Ferguson 42 Power
Engine	42 hp 31.3 kW

Mechanical
Two-wheel drive
Open operator station.

Tractor hitch
Rear Type	II/I

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	540@1600

Dimensions & Tires
Wheelbase	72.1 inches 183 cm
Weight	3638 lbs 1650 kg
Front tire	6.00-16
Rear tire	11-28
Full dimensions and tires ...

Engine

Engine Detail — 152 ci / 2.5 L Diesel

Manufacturer	Perkins A3.152
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	152 ci 2.5 L
Bore/Stroke	3.60x5.00 inches 91 x 127 mm
Power	42 hp 31.3 kW
Compression	17.4:1
Rated RPM	2250
Idle RPM	600-2500
Firing order	1-2-3
Starter	12
Starter volts	electric
Coolant capacity	10.8 qts 10.2 L

Transmission

Transmission options
6-speed gear
12-speed two-speed power shift

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Clutch	280mm dry disc
Oil capacity	31.7 qts 30.0 L
Three speeds, plus reverse, in two ranges.
With 11-28 rear tires.

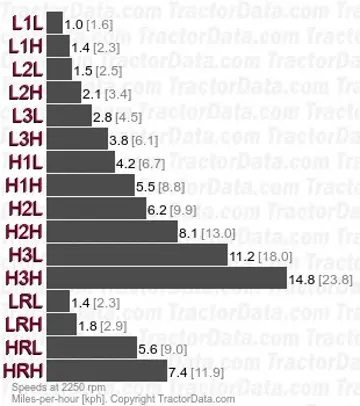

Transmission — Multipower

Transmission	Multipower
Type	two-speed power shift
Gears	12 forward and 4 reverse
Clutch	280mm dry disc
Oil capacity	31.7 qts 30.0 L
With 11-28 rear tires.

Dimensions

Massey Ferguson 42 Tires
Ag front	6.00-16
Ag rear	11-28
Ag front	6.00-19
Ag rear	12-28
	11-32

Dimensions
Wheelbase	72.1 inches 183 cm
Length	118.1 inches 299 cm
Width	72.1 inches 183 cm
Height	56.1 inches 142 cm
Weight	3638 lbs 1650 kg

Photos

Massey Ferguson 42

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 42 based on its 42 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 42.

Estimated Continuous Field Runtime: 4.7 hrs

Approximately 4.7 hours of continuous field operation at ~75% rated power on a full tank (10.2 gal / 38.6 L).

Estimated 75% Load Fuel Burn~2.2 gal/hr (8.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
